Freeman Marine Deck Hatches – Knife-Edge Seal (2400 Series)

Technical Guide: Why Choose Freeman Knife-Edge Deck Hatches?

Freeman knife-edge engineering is designed for the most demanding maritime operating environments where working decks endure constant breaking seas, heavy washdown, and structural flexing. Unlike planar compression seals, the knife-edge design establishes a dual barrier against ingress through extreme concentrated contact force paired with perimeter drainage.

Key Engineering & Operational Advantages:

• Integrated Perimeter Drain Gutter with Spigot: The cast coaming incorporates a deep perimeter trough surrounding the knife-edge. When opening the hatch in rough weather, standing deck water drains clear rather than cascading into engine rooms or cargo holds.

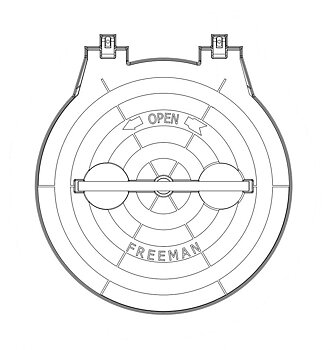

• Heavy-Duty Hinges with >180° Opening Angle: All hinged models (suffix -HK, such as 1524-HK, 2424-HK, and 18-HK) feature Freeman's rugged marine hinge mechanism allowing the cover to rotate beyond 180 degrees. The open cover rests flat and stable directly against the deck plating. This eliminates the danger of gusting winds or vessel rolling slamming the hatch shut, relieves mechanical leverage on hinge pins, and guarantees unobstructed crew transit.
• Protected Gasket Location: The hollow neoprene gasket is housed inside a precision-machined channel on the cover underside. When open for cargo operations, equipment passage, or servicing, the gasket remains shielded from dropped hand tools, heavy rigging, and deck traffic.
• Immense Concentrated Sealing Load: The machined knife-edge rim concentrates the dogging mechanism's clamping force across a narrow focal area, maintaining positive watertight integrity even under severe hull torsional flexing.
• Almag-35 Marine Metallurgy: Covers are cast in premium corrosion-resistant Almag-35 marine aluminum, paired with stainless steel dogging arms, center spindles, and hinge pins for decades of reliable commercial duty.

Coaming Options (Deck Rings)

All round, oval, square, and rectangular Knife-Edge hatches can be configured directly via the dropdown menu on each product page:

• Aluminium Ring (Weld-in or Bolt-in): For welding into aluminum decks or through-bolt fastening on composite, fiberglass (GRP), or timber working decks.
• Steel Ring (Weld-in): For direct welding into commercial steel decks on tugs, trawlers, workboats, and cargo vessels.
• Stainless Steel Ring: For specialized applications requiring exceptional metallurgical corrosion resistance.
• Cover Plate Assembly Only: Complete replacement cover with pre-installed dogging mechanism and gasket for existing Freeman coamings.
