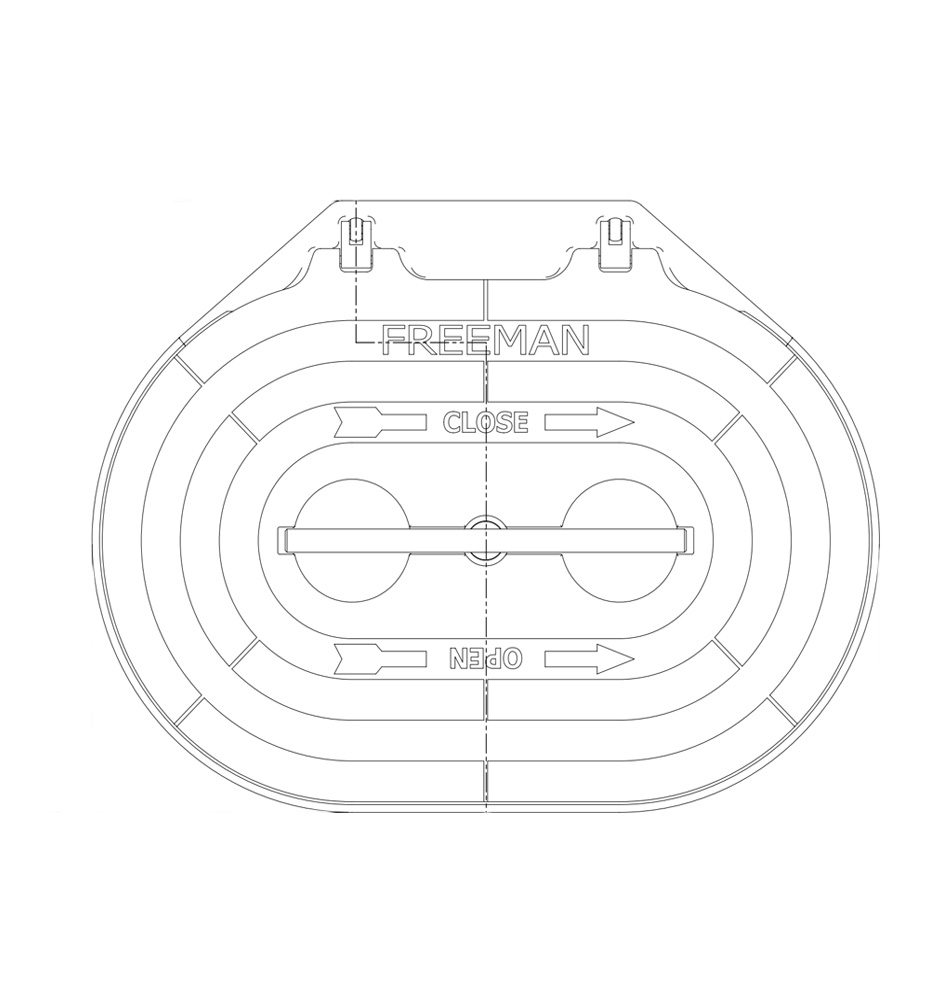

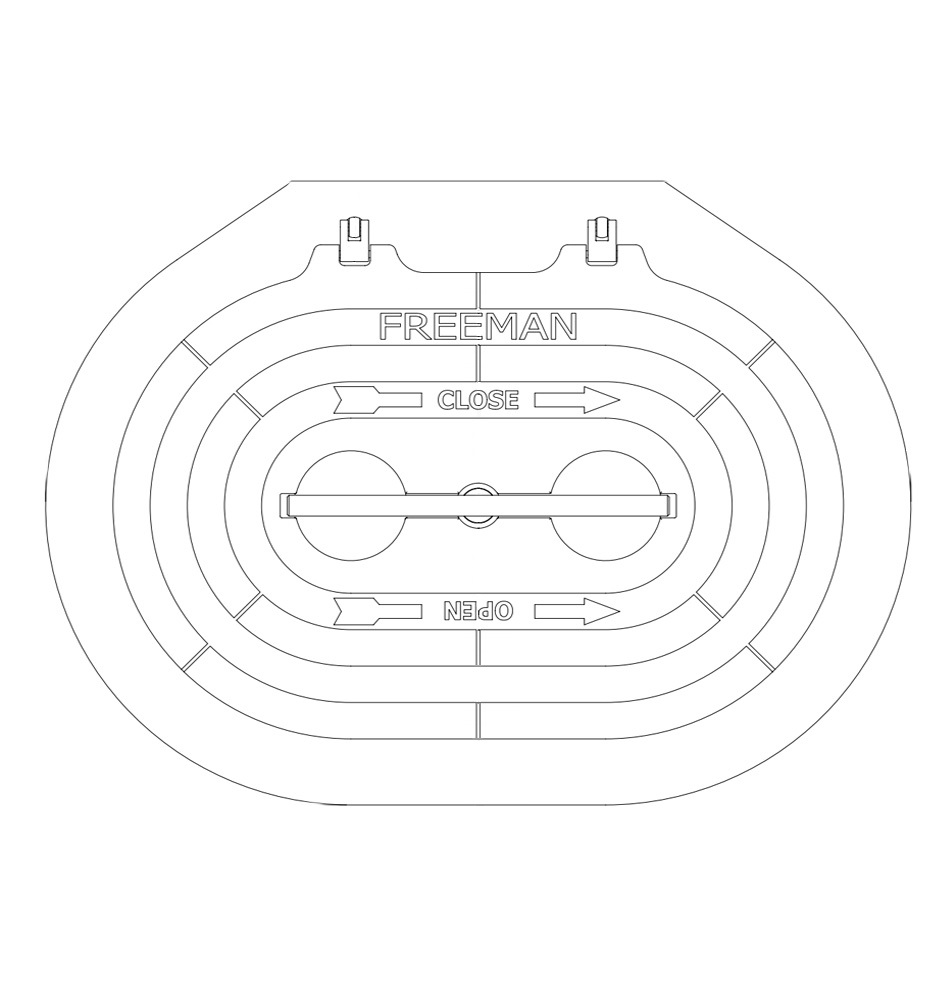

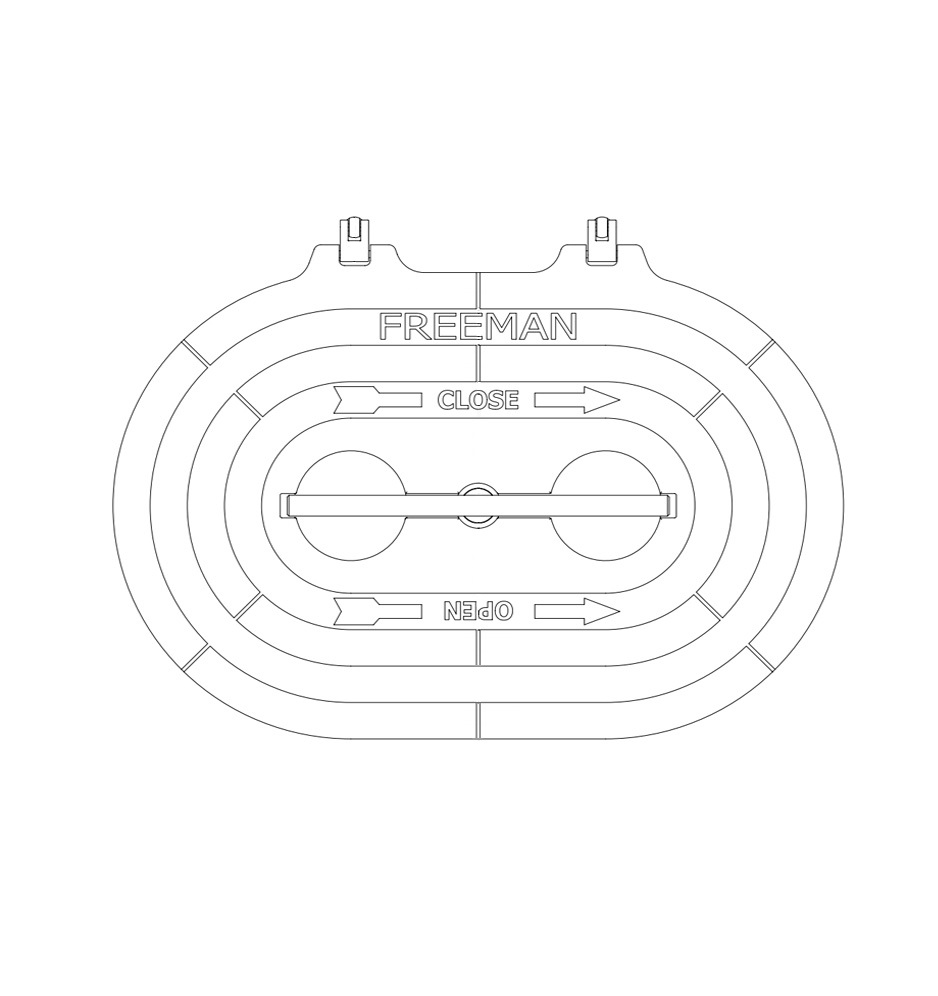

Freeman Marine hinged oval deck hatch model 1524-HK (15" x 24" clear opening, knife-edge seal)
Heavy-duty 15" x 24" hinged oval deck hatch from Freeman Marine featuring commercial knife-edge sealing. Premier captive manhole and service hatch for tanks, machinery spaces, and deck access on commercial vessels and offshore workboats.
- Secure payment by card
- Questions? Please give us a call!
- BrandFreeman Marine
- ConditionNew
Description
Article no.: BFR-2474
The Freeman Marine Model 1524-HK (2474 Series) is a rugged, commercial-grade hinged oval deck hatch featuring a 15" x 24" (381 x 610 mm) clear opening and field-proven knife-edge sealing technology. As an established industry standard for marine oval manholes, it enables comfortable crew entry and equipment servicing while aligning efficiently with longitudinal deck framing.
The heavy-duty integrated hinge keeps the cover plate captive and safely positioned during opening, preventing deck damage, accidental closure in rough sea conditions, or loss overboard. Freeman's knife-edge design concentrates dogging closure force along a machined coaming knife edge against a resilient hollow gasket housed inside the cover plate. This establishes an uncompromising 100% watertight and weathertight barrier capable of withstanding extreme hydrostatic pressures and continuous green water deck washdown. The recessed gasket in the cover plate remains shielded from mechanical impact and abrasion when the hatch is open.
Key Features & Benefits:
- 15" x 24" (381 x 610 mm) clear opening – generous oval aperture for manhole access, engine spaces, and gear handling.
- Hinged cover plate – securely attached to the ring for controlled handling and enhanced crew safety.
- Knife-edge seal – maximum contact pressure ensuring watertight reliability under severe open-sea conditions.
- Recessed gasket in cover – shielded from impact damage and foot traffic during deck operations.
- Rugged cast marine-grade aluminum construction with corrosion-resistant stainless steel mechanisms.
- Quick-acting dogging mechanism operated by Freeman deck key or handle.
- Available as a complete unit with weldable ring (aluminum, steel, or stainless steel) or as a replacement cover plate only.
Available Configurations (select above):
- Complete unit with aluminum deck ring (Part No: 2474-0002)
- Complete unit with steel deck ring (Part No: 2474-0003)
- Complete unit with stainless steel deck ring (Part No: 2474-0005)
- Cover plate assembly only, without deck ring (Part No: 2474-1001)
Bövik Marin AB supplies authentic Freeman Marine hatches, replacement gaskets, and hardware worldwide. Contact us for technical support or quotation.
The heavy-duty integrated hinge keeps the cover plate captive and safely positioned during opening, preventing deck damage, accidental closure in rough sea conditions, or loss overboard. Freeman's knife-edge design concentrates dogging closure force along a machined coaming knife edge against a resilient hollow gasket housed inside the cover plate. This establishes an uncompromising 100% watertight and weathertight barrier capable of withstanding extreme hydrostatic pressures and continuous green water deck washdown. The recessed gasket in the cover plate remains shielded from mechanical impact and abrasion when the hatch is open.
Key Features & Benefits:
- 15" x 24" (381 x 610 mm) clear opening – generous oval aperture for manhole access, engine spaces, and gear handling.
- Hinged cover plate – securely attached to the ring for controlled handling and enhanced crew safety.
- Knife-edge seal – maximum contact pressure ensuring watertight reliability under severe open-sea conditions.
- Recessed gasket in cover – shielded from impact damage and foot traffic during deck operations.
- Rugged cast marine-grade aluminum construction with corrosion-resistant stainless steel mechanisms.
- Quick-acting dogging mechanism operated by Freeman deck key or handle.
- Available as a complete unit with weldable ring (aluminum, steel, or stainless steel) or as a replacement cover plate only.
Available Configurations (select above):
- Complete unit with aluminum deck ring (Part No: 2474-0002)
- Complete unit with steel deck ring (Part No: 2474-0003)
- Complete unit with stainless steel deck ring (Part No: 2474-0005)
- Cover plate assembly only, without deck ring (Part No: 2474-1001)
Bövik Marin AB supplies authentic Freeman Marine hatches, replacement gaskets, and hardware worldwide. Contact us for technical support or quotation.
