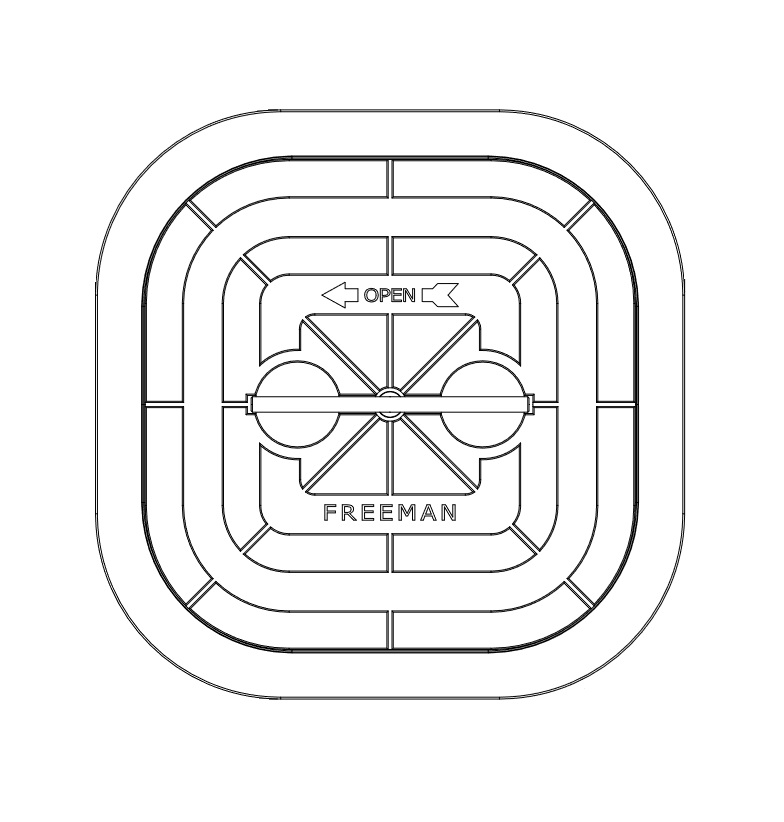

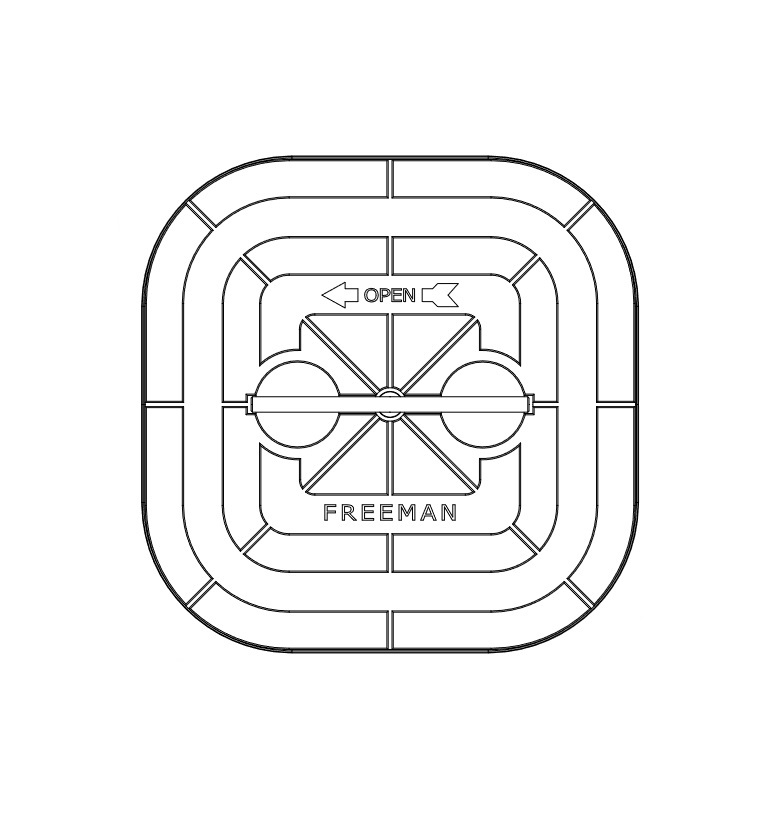

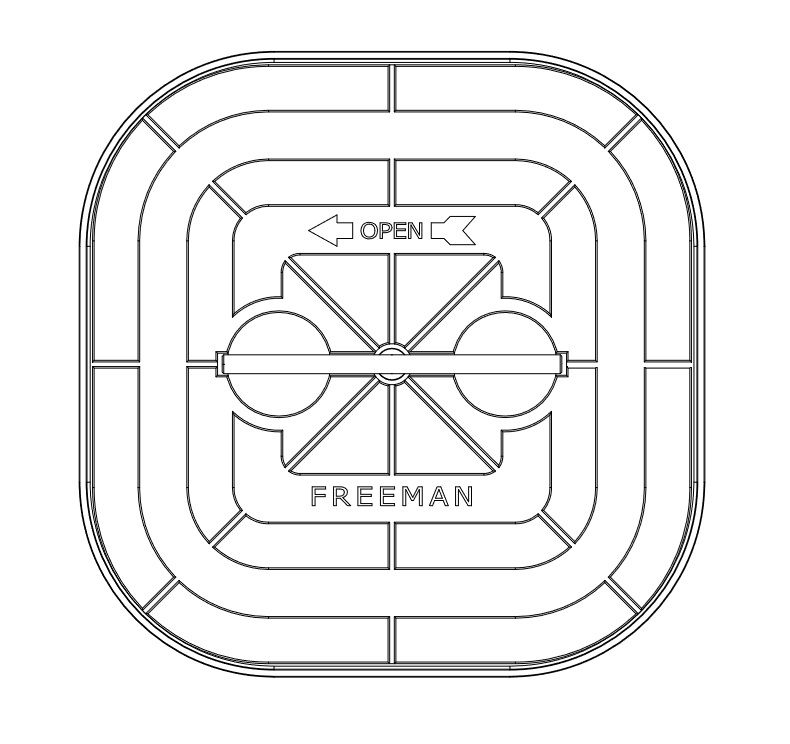

Freeman Marine square deck hatch model 2020K (20" x 20" clear opening, knife-edge seal)
Heavy-duty flush 20" x 20" square deck hatch from Freeman Marine featuring commercial knife-edge sealing and a lift-out cover plate. Ideal service and manhole access hatch for engine rooms, cargo holds, and tanks on commercial vessels and workboats.
- Secure payment by card
- Questions? Please give us a call!
- BrandFreeman Marine
- ConditionNew
Description
Article no.: BFR-2422
The Freeman Marine Model 2020K (2422 Series) is a rugged, heavy-duty square deck hatch featuring a 20" x 20" (508 x 508 mm) clear opening and field-proven knife-edge sealing technology. Engineered for flush deck mounting, it blends smoothly into deck surfaces, eliminating tripping hazards and facilitating seamless deck cargo operations.
The hatch utilizes Freeman's proven knife-edge sealing system, where a precision coaming knife edge concentrates dogging force into a resilient hollow neoprene gasket recessed in the cover plate. This creates a 100% watertight and weathertight barrier capable of withstanding heavy sea wash and high hydrostatic loads. The fully removable lift-out cover plate enables completely unobstructed access for crew and equipment in restricted deck spaces.
Key Features & Benefits:
- 20" x 20" (508 x 508 mm) clear opening – generous square access for crew passage and equipment maintenance.
- Lift-out cover plate – removes completely for unhindered entry and exit.
- Knife-edge seal – maximum contact pressure ensuring watertight reliability under severe sea conditions.
- Recessed cover gasket – shielded from damage and abrasion when the hatch is open.
- Rugged marine-grade cast aluminum cover with stainless steel dogging components.
- Quick-acting central dogging mechanism operated by Freeman deck key or handle.
- Available as a complete unit with weldable ring (aluminum, steel, or stainless steel) or as a replacement cover plate only.
Available Configurations (select above):
- Complete unit with aluminum deck ring (Part No: 2422-0002)
- Complete unit with steel deck ring (Part No: 2422-0003)
- Complete unit with stainless steel deck ring (Part No: 2422-0005)
- Cover plate assembly only, without deck ring (Part No: 2422-1001)
Bövik Marin AB supplies authentic Freeman Marine hatches, replacement gaskets, and hardware worldwide. Contact us for technical support or quotation.
