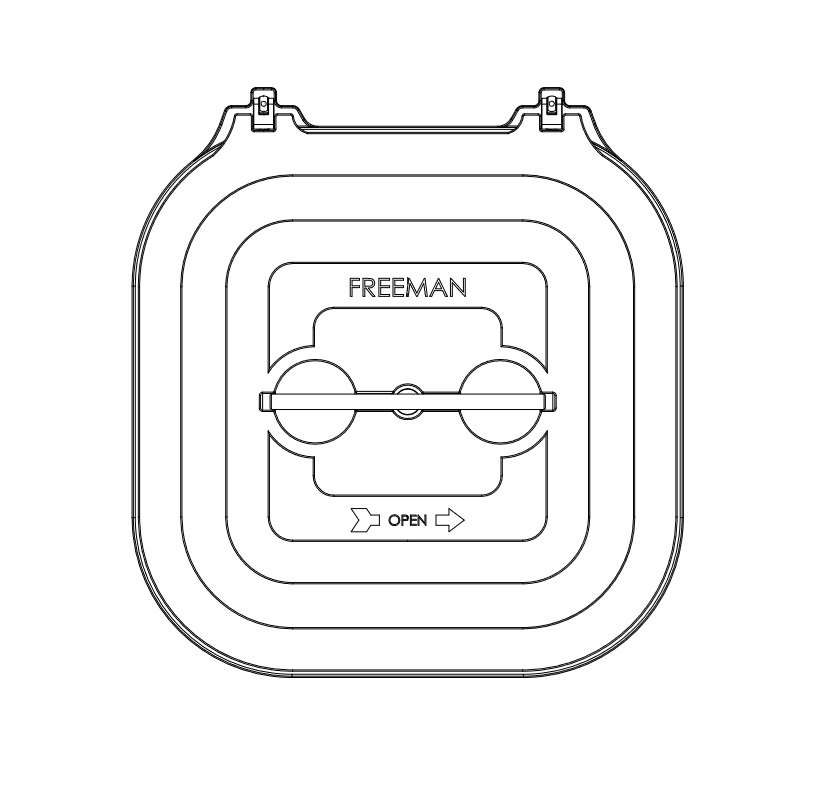

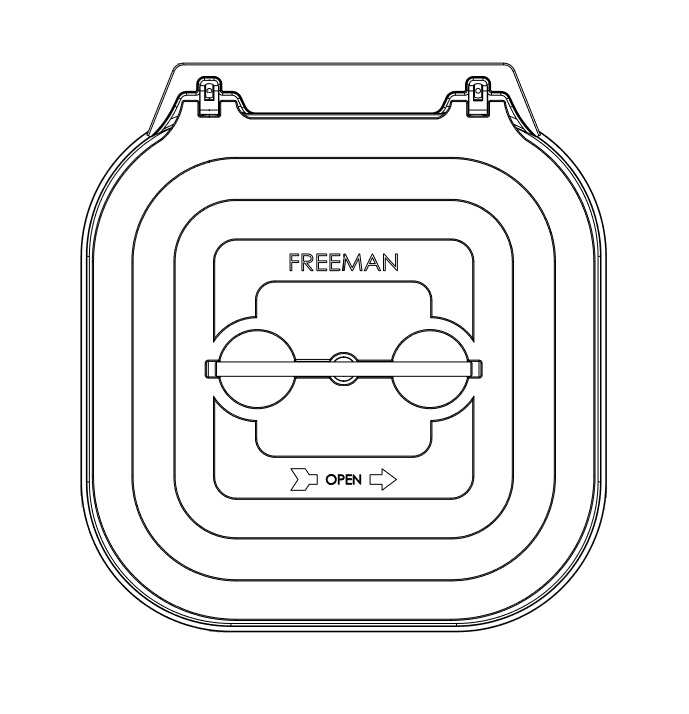

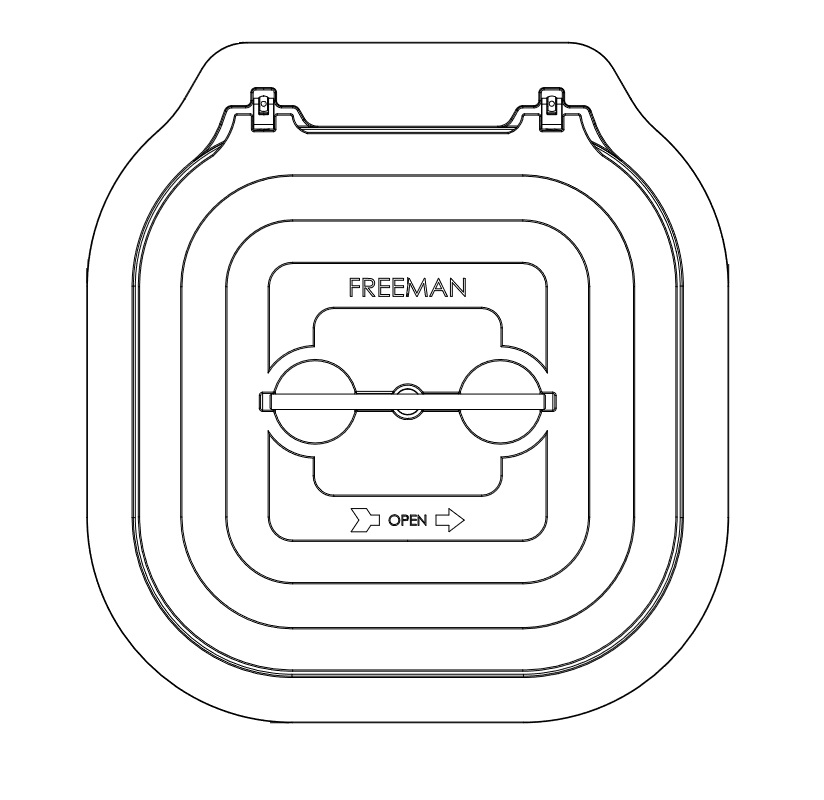

Freeman Marine hinged square deck hatch model 2424-HK (24" x 24" clear opening, knife-edge seal)
Heavy-duty flush 24" x 24" hinged square deck hatch from Freeman Marine featuring commercial knife-edge sealing. The industry standard size for emergency escape, generous manhole access, and engine room entry on commercial vessels and workboats with captive hinged security.
- Secure payment by card
- Questions? Please give us a call!
- BrandFreeman Marine
- ConditionNew
Description
Article no.: BFR-2464
The Freeman Marine Model 2424-HK (2464 Series) is a rugged, heavy-duty hinged square deck hatch featuring a 24" x 24" (610 x 610 mm) clear opening and time-tested knife-edge sealing technology. Recognized internationally as the standard dimension for emergency escape and crew access, the Model 2424-HK combines maximum passage clearance with a completely flush profile that maintains a safe, trip-free deck environment.
The heavy-duty integrated hinge keeps the cover plate firmly anchored to the coaming, ensuring safe and controlled operation in demanding sea conditions while preventing accidental closing, deck damage, or overboard loss. Featuring Freeman's field-proven commercial knife-edge sealing design, a machined coaming knife edge embeds firmly into a durable hollow seal housed in the cover plate. This design concentrates dogging force into high contact pressure, guaranteeing 100% weathertight and watertight security even under heavy sea wash and severe wave impact. Recessed within the cover plate channel, the gasket is fully shielded from cargo impact and foot traffic.
Key Features & Benefits:
- 24" x 24" (610 x 610 mm) clear opening – standard dimension for marine emergency escape and crew transit.
- Hinged cover plate – securely attached to the deck ring for controlled, safe deck operations.
- Knife-edge seal – delivers superior contact pressure and sealing reliability on exposed working decks.
- Recessed gasket – protected from cargo impacts and mechanical abrasion when open.
- Cast marine-grade aluminum cover with stainless steel dogging mechanism.
- Operated quickly by Freeman's central dogging mechanism via deck key or handle.
- Available as a complete unit with weldable ring (aluminum, steel, or stainless steel) or as a replacement cover plate only.
Available Configurations (select above):
- Complete unit with aluminum deck ring (Part No: 2464-0002)
- Complete unit with steel deck ring (Part No: 2464-0003)
- Complete unit with stainless steel deck ring (Part No: 2464-0005)
- Cover plate assembly only, without deck ring (Part No: 2464-1001)
Bövik Marin AB supplies authentic Freeman Marine hatches, replacement gaskets, and hardware worldwide. Contact us for technical support or quotation.
