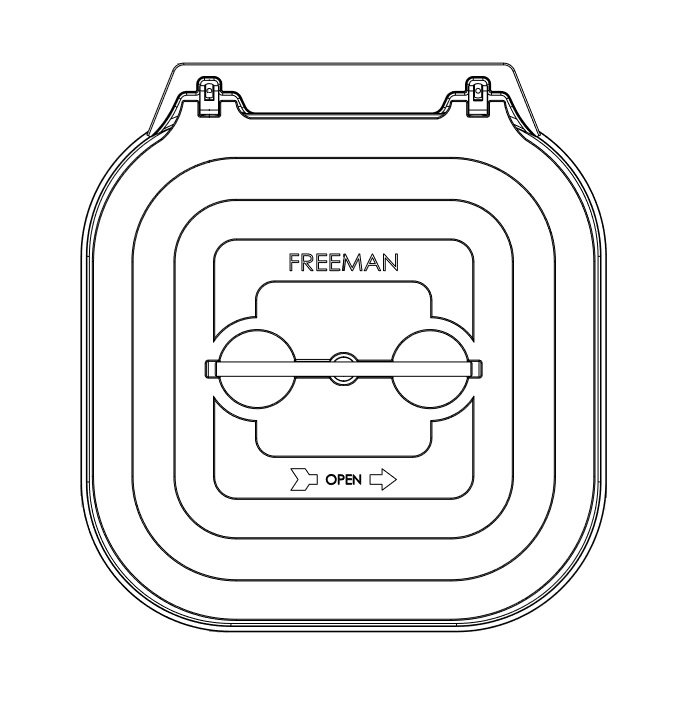

Freeman Marine hinged square deck hatch model 2222-HK (22" x 22" clear opening, knife-edge seal)
Rugged flush 22" x 22" hinged square deck hatch from Freeman Marine featuring commercial knife-edge sealing. Generously sized access, manhole, and inspection hatch for engine spaces, cargo holds, and tanks on commercial vessels and workboats with captive hinged security.
- Secure payment by card
- Questions? Please give us a call!
- BrandFreeman Marine
- ConditionNew
Description
Article no.: BFR-2463
The Freeman Marine Model 2222-HK (2463 Series) is a rugged, heavy-duty hinged square deck hatch featuring a 22" x 22" (559 x 559 mm) clear opening and time-tested knife-edge sealing technology. Engineered for flush deck installation, it provides a completely level profile that eliminates obstructions and optimizes working deck efficiency.
The heavy-duty integrated hinge keeps the cover securely attached to the deck ring during operation, ensuring controlled and safe handling in rough seas while preventing deck damage or accidental loss. Utilizing Freeman's commercial knife-edge sealing mechanism, a raised coaming knife edge bites firmly into a resilient hollow seal housed within the cover plate. This concentrated pressure ensures 100% watertight and weathertight integrity against heavy breaking seas and high hydrostatic heads. Recessed inside the cover plate, the gasket is completely protected from impacts and wear when open.
Key Features & Benefits:
- 22" x 22" (559 x 559 mm) clear opening – generous square dimensions for comfortable crew access and gear stowage.
- Hinged cover plate – securely attached to the ring for controlled, safe deck operations.
- Knife-edge seal – delivers exceptional contact pressure for reliable sealing in extreme marine conditions.
- Protected seal design – gasket is recessed inside the cover, preventing mechanical damage when open.
- Cast marine-grade aluminum construction with corrosion-resistant stainless steel mechanisms.
- Quick-acting dogging mechanism operated by Freeman deck key or handle.
- Available as a complete unit with weldable ring (aluminum, steel, or stainless steel) or as a replacement cover plate only.
Available Configurations (select above):

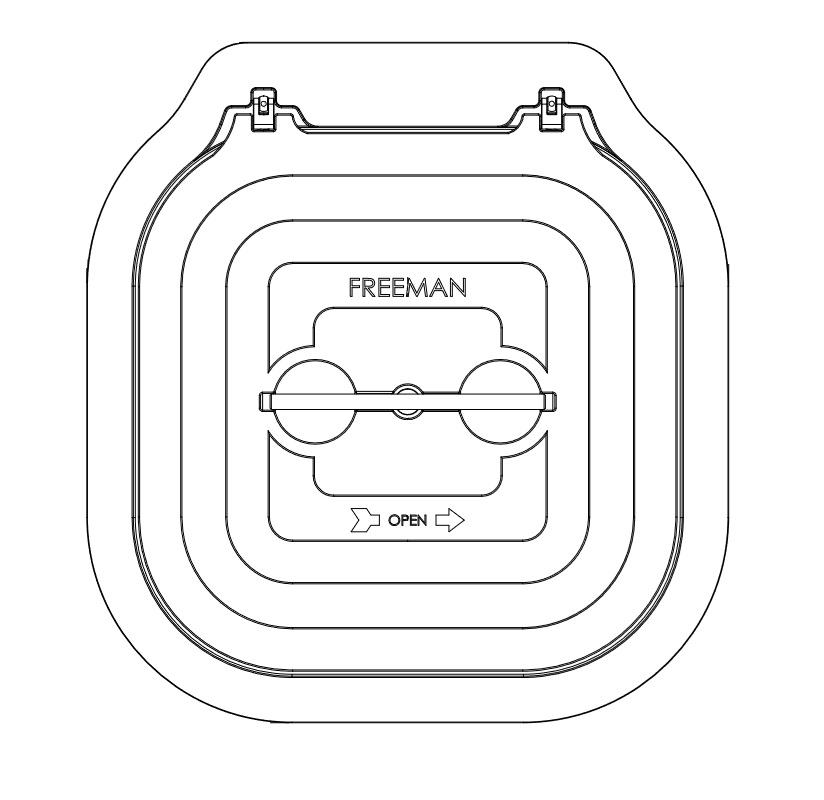

- Complete unit with aluminum deck ring (Part No: 2463-0002)
- Complete unit with steel deck ring (Part No: 2463-0003)
- Complete unit with stainless steel deck ring (Part No: 2463-0005)

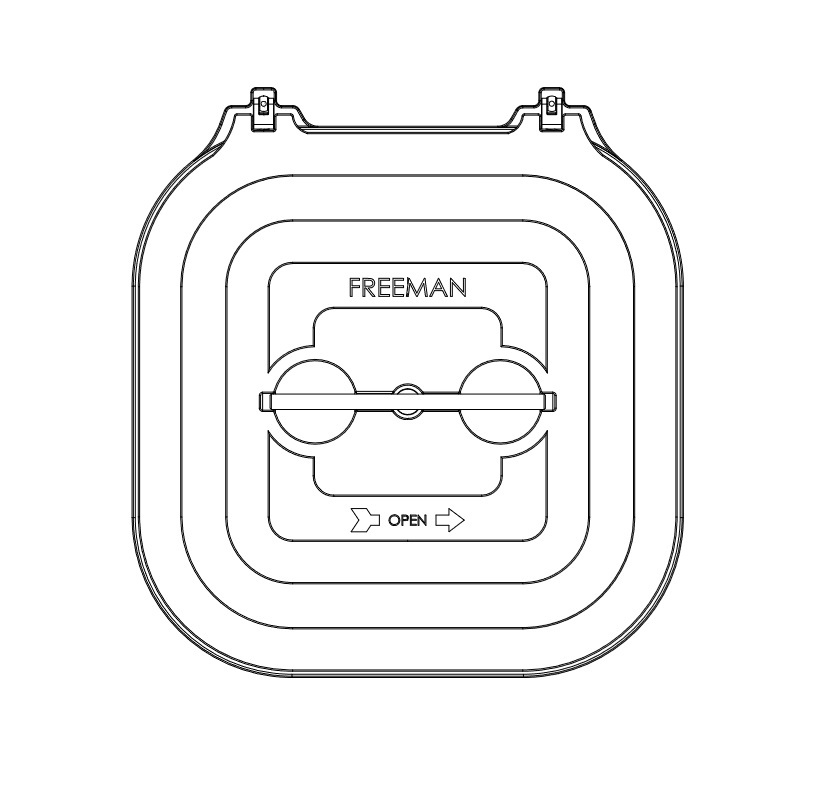

- Cover plate assembly only, without deck ring (Part No: 2463-1001)
Bövik Marin AB supplies authentic Freeman Marine hatches, replacement gaskets, and hardware worldwide. Contact us for technical support or quotation.
