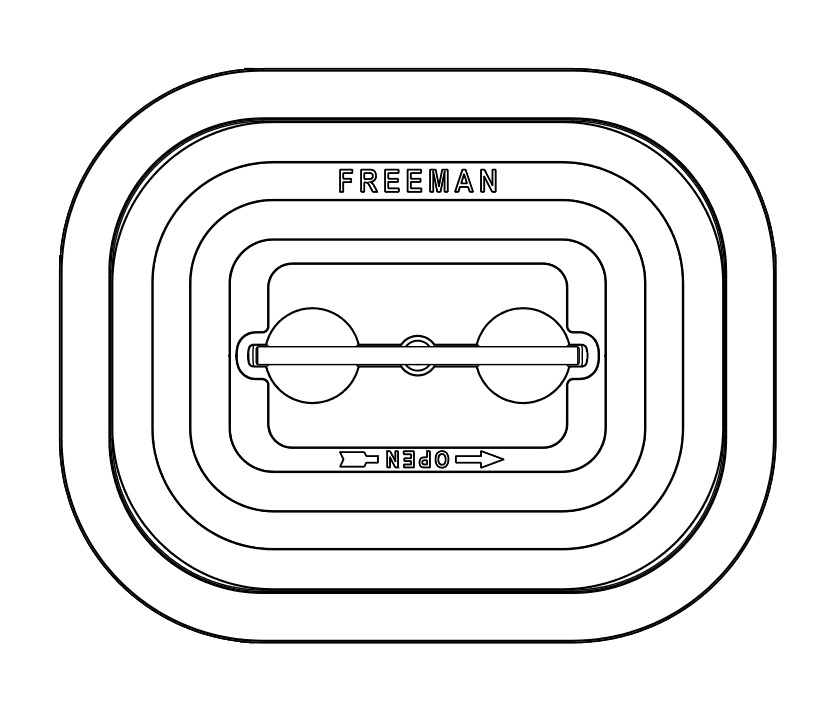

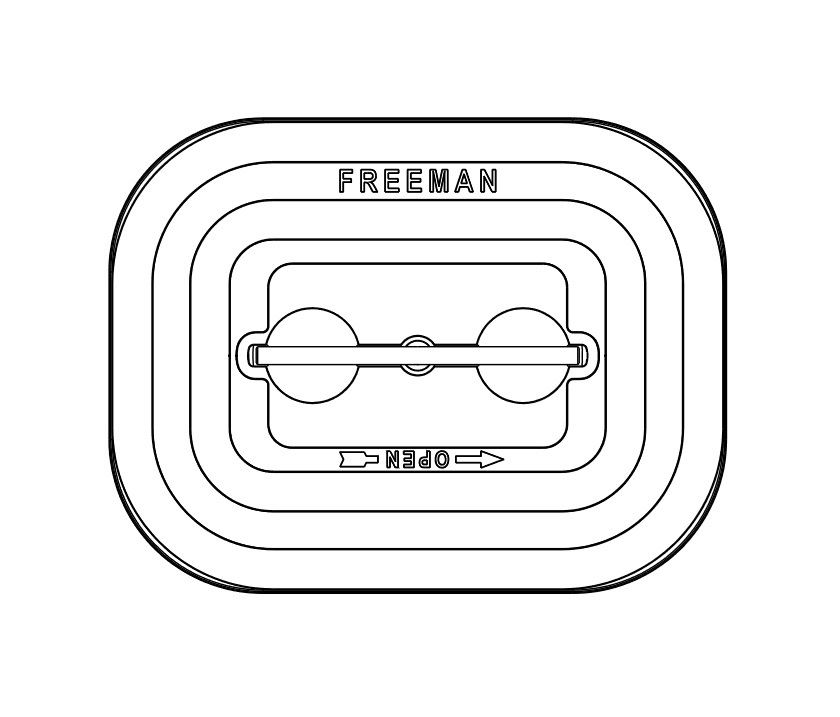

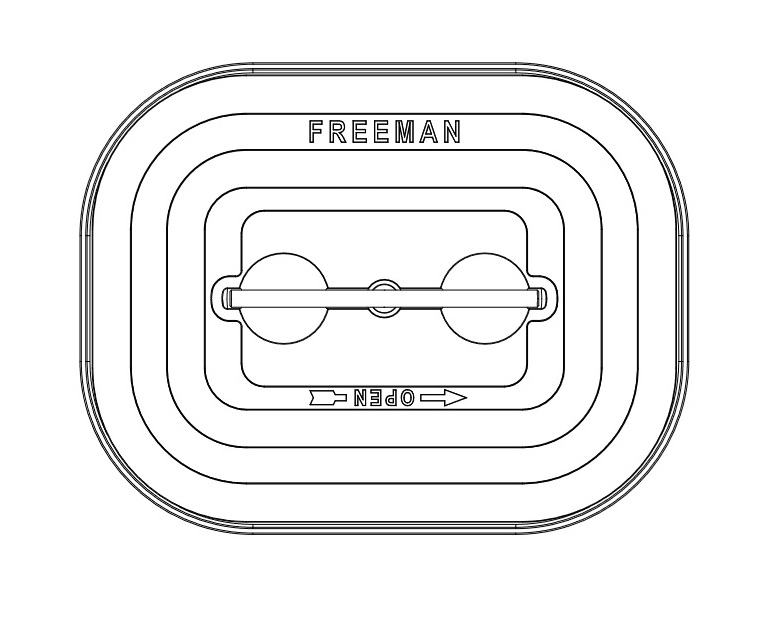

Freeman Marine rectangular deck hatch model 2428K (24" x 28" clear opening, knife-edge seal)
Rugged and spacious 24" x 28" rectangular deck hatch from Freeman Marine featuring commercial knife-edge sealing and a lift-out cover plate. Generously sized manhole, escape hatch, and machinery access for commercial vessels, cargo barges, and workboats.
- Secure payment by card
- Questions? Please give us a call!
- BrandFreeman Marine
- ConditionNew
Description
Article no.: BFR-2436
The Freeman Marine Model 2428K (2436 Series) is a heavy-duty rectangular deck hatch featuring an expansive 24" x 28" (610 x 711 mm) clear opening and time-proven knife-edge sealing technology. With its generous dimensions, this model provides comfortable clearance for personnel in heavy work gear, machinery component handling, and emergency escape access.
The commercial knife-edge design concentrates dogging closure force along a machined coaming knife edge against a resilient hollow gasket housed inside the cover plate. This establishes an uncompromising 100% watertight and weathertight barrier capable of withstanding extreme hydrostatic pressure and continuous deck washdown. Designed for flush deck mounting, the Model 2428K includes a fully removable lift-out cover plate, offering completely unobstructed clearance. Because the gasket is recessed within the cover plate, it remains fully protected from mechanical impact and heavy foot traffic when the hatch is open.
Key Features & Benefits:
- 24" x 28" (610 x 711 mm) clear opening – spacious passage for personnel access, equipment servicing, and emergency egress.
- Lift-out cover plate – completely removable for full, unrestricted clearance.
- Knife-edge sealing – maximum contact pressure ensuring watertight reliability under severe open-sea conditions.
- Recessed gasket in cover – protected against impact, dropped objects, and heavy wear.
- Rugged cast marine-grade aluminum construction with corrosion-resistant stainless steel mechanisms.
- Quick-acting dogging mechanism operated by Freeman deck key or handle.
- Available as a complete unit with weldable ring (aluminum, steel, or stainless steel) or as a replacement cover plate only.
Available Configurations (select above):
- Complete unit with aluminum deck ring (Part No: 2436-0002)
- Complete unit with steel deck ring (Part No: 2436-0003)
- Complete unit with stainless steel deck ring (Part No: 2436-0005)
- Cover plate assembly only, without deck ring (Part No: 2436-1001)
Bövik Marin AB supplies authentic Freeman Marine hatches, replacement gaskets, and hardware worldwide. Contact us for technical support or quotation.
