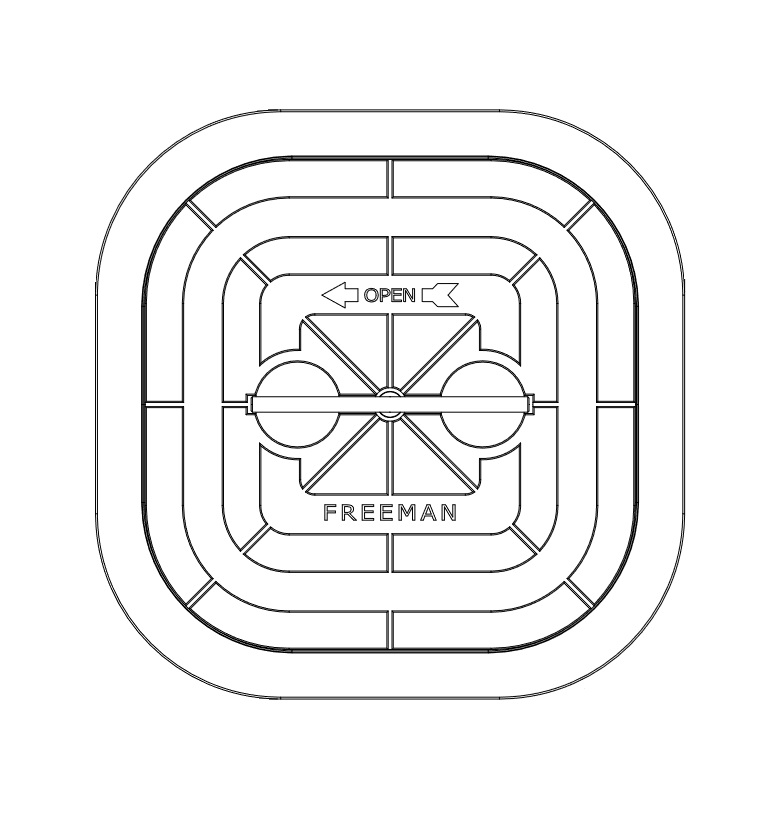

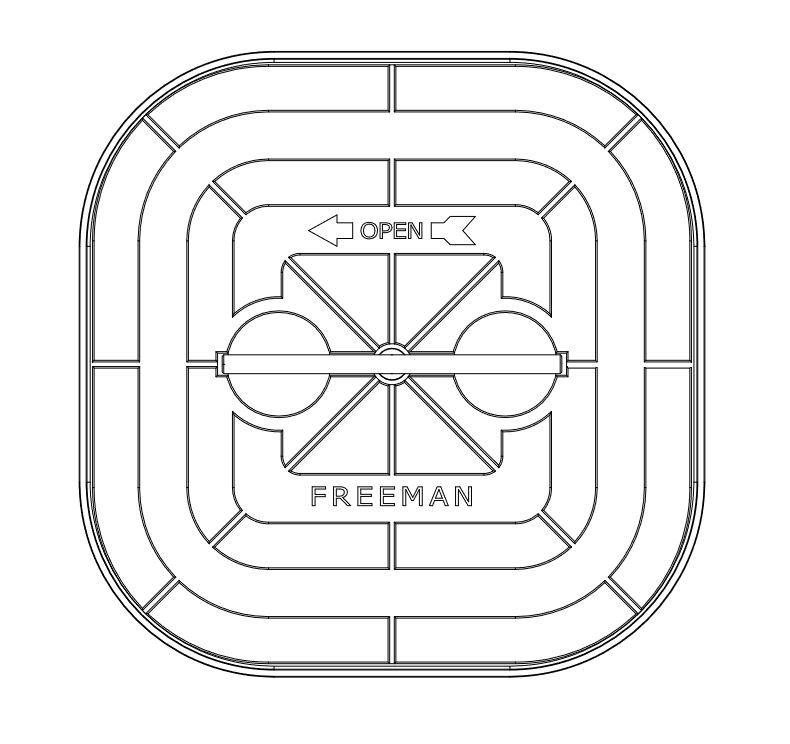

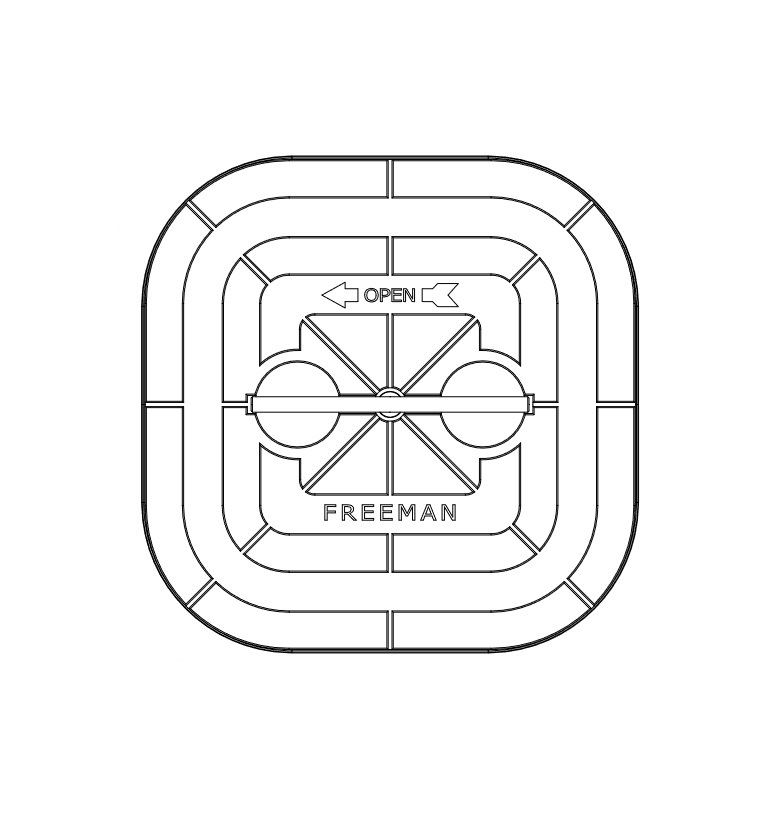

Freeman Marine square deck hatch model 2727K (27" x 27" clear opening, knife-edge seal)
Extra-spacious flush 27" x 27" square deck hatch from Freeman Marine featuring commercial knife-edge sealing and a lift-out cover plate. Ideal oversized emergency escape, crew manhole, and machinery service hatch for commercial vessels and workboats.
- Secure payment by card
- Questions? Please give us a call!
- BrandFreeman Marine
- ConditionNew
Description
Article no.: BFR-2427
The Freeman Marine Model 2727K (2427 Series) is a rugged, heavy-duty square deck hatch featuring a 27" x 27" (686 x 686 mm) clear opening and field-proven knife-edge sealing technology. Offering an extra-generous aperture, the Model 2727K provides comfortable transit for crew members wearing protective gear and allows smooth transfer of equipment, all while maintaining a smooth, trip-free flush deck profile.
Built around Freeman's commercial knife-edge sealing principle, an elevated coaming knife edge presses firmly into a durable hollow elastomer seal housed in the cover plate. This high-pressure sealing line guarantees 100% watertight integrity against heavy sea boarding and high hydrostatic heads. The lift-out cover plate can be lifted clear entirely, providing unrestricted overhead clearance in active working zones.
Key Features & Benefits:
- 27" x 27" (686 x 686 mm) clear opening – oversized square aperture ideal for emergency escape and heavy equipment access.
- Lift-out cover plate – fully removable for unobstructed entry and exit.
- Knife-edge seal – delivers superior sealing pressure and watertight performance under harsh marine exposure.
- Recessed gasket – protected from deck impact and abrasion when the cover is removed.
- Heavy-duty cast marine-grade aluminum construction with corrosion-proof stainless steel dogging mechanism.
- Fast dogging operation via Freeman's central mechanism using a deck key or handle.
- Available as a complete unit with weldable ring (aluminum, steel, or stainless steel) or as a replacement cover plate only.
Available Configurations (select above):
- Complete unit with aluminum deck ring (Part No: 2727-0002)
- Complete unit with steel deck ring (Part No: 2727-0003)
- Complete unit with stainless steel deck ring (Part No: 2727-0005)
- Cover plate assembly only, without deck ring (Part No: 2727-1001)
Bövik Marin AB supplies authentic Freeman Marine hatches, replacement gaskets, and hardware worldwide. Contact us for technical support or quotation.
