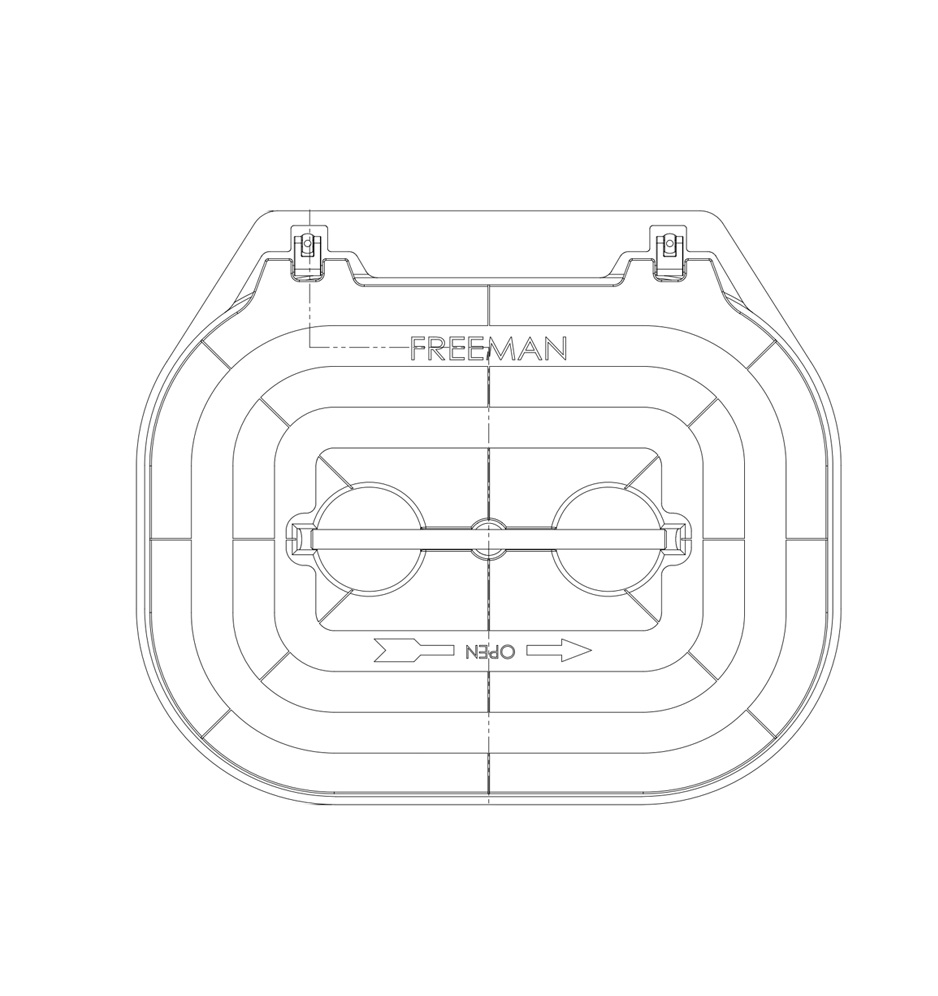

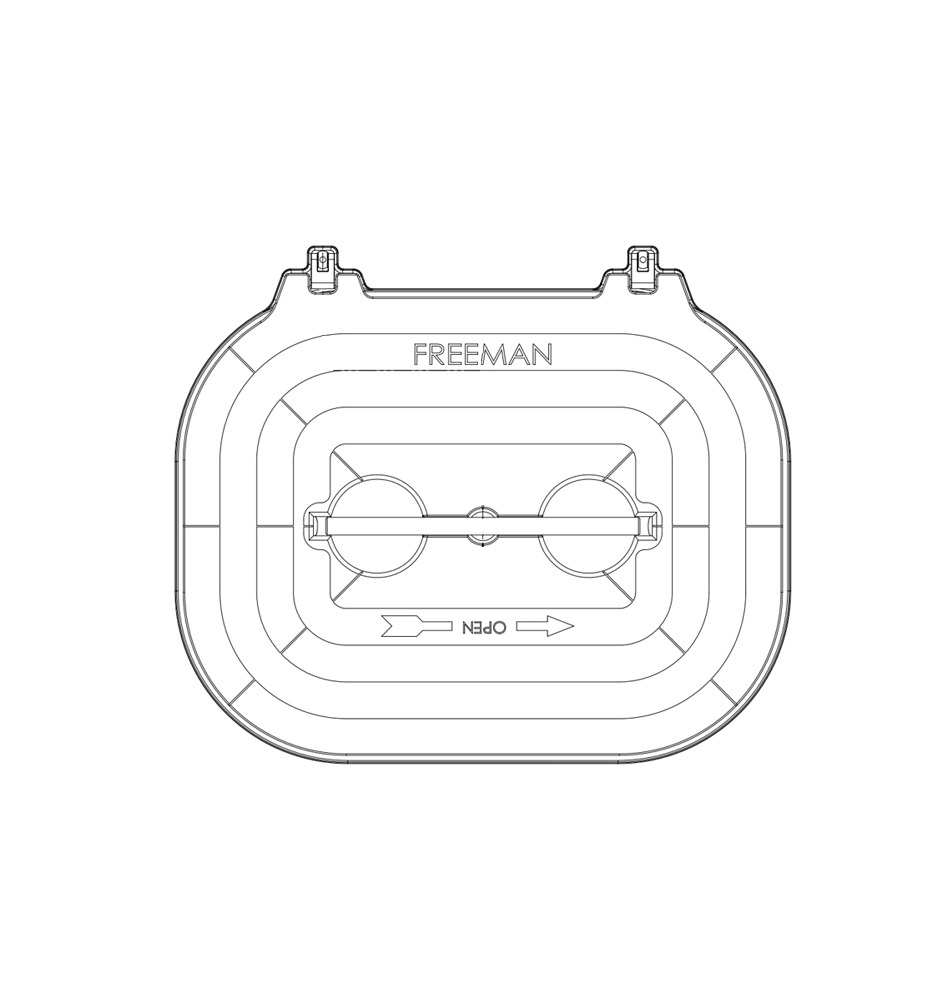

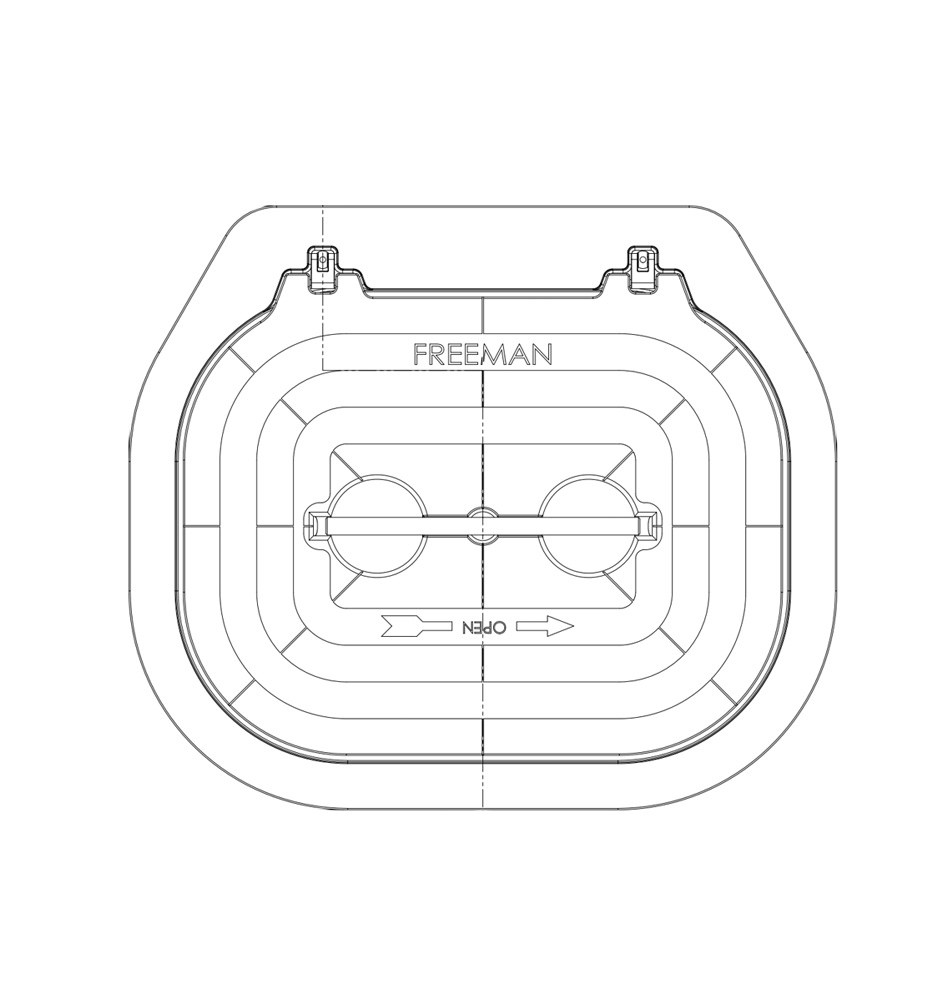

Freeman Marine hinged rectangular deck hatch model 3036-HK (30" x 36" clear opening, knife-edge seal)
Extra-large heavy-duty 30" x 36" hinged rectangular deck hatch from Freeman Marine featuring commercial knife-edge sealing. Premier access hatch for machinery removal, cargo holds, generous crew egress, and escape trunks with captive hinged control.
- Secure payment by card
- Questions? Please give us a call!
- BrandFreeman Marine
- ConditionNew
Description
Article no.: BFR-2469
The Freeman Marine Model 3036-HK (2469 Series) is an extra-large, commercial-grade hinged rectangular deck hatch featuring a massive 30" x 36" (762 x 914 mm) clear opening and time-proven knife-edge sealing technology. Combining huge clearance with heavy-duty captive hinged operation, it provides the ultimate deck access solution for machinery rooms, cargo trunks, and emergency escape routes on commercial vessels and offshore platforms.
The heavy-duty integrated hinge keeps the large cover plate securely anchored to the deck coaming, preventing accidental closing in rough seas, structural deck damage, or overboard loss during operations. Freeman's knife-edge design concentrates dogging closure force along a machined coaming knife edge against a resilient hollow gasket housed inside the cover plate. This establishes an uncompromising 100% watertight and weathertight barrier capable of resisting extreme hydrostatic head pressures and heavy green sea washdown. Recessed within the cover plate channel, the seal is completely protected from dropped equipment and heavy foot traffic when the hatch is open.
Key Features & Benefits:
- 30" x 36" (762 x 914 mm) clear opening – massive rectangular dimensions for machinery hoisting, cargo handling, and generous escape passage.
- Hinged cover plate – securely attached to the ring for controlled, safe deck operations.
- Knife-edge seal – maximum contact pressure ensuring watertight reliability in extreme open-ocean conditions.
- Recessed gasket in cover – shielded from impact damage and foot traffic during deck operations.
- Rugged cast marine-grade aluminum construction with corrosion-resistant stainless steel mechanisms.
- Quick-acting dogging mechanism operated by Freeman deck key or handle.
- Available as a complete unit with weldable ring (aluminum, steel, or stainless steel) or as a replacement cover plate only.
Available Configurations (select above):
- Complete unit with aluminum deck ring (Part No: 2469-0002-0001)
- Complete unit with steel deck ring (Part No: 2469-0003-0001)
- Complete unit with stainless steel deck ring (Part No: 2469-0005-0001)
- Cover plate assembly only, without deck ring (Part No: 2469-1001-0001)
Bövik Marin AB supplies authentic Freeman Marine hatches, replacement gaskets, and hardware worldwide. Contact us for technical support or quotation.
