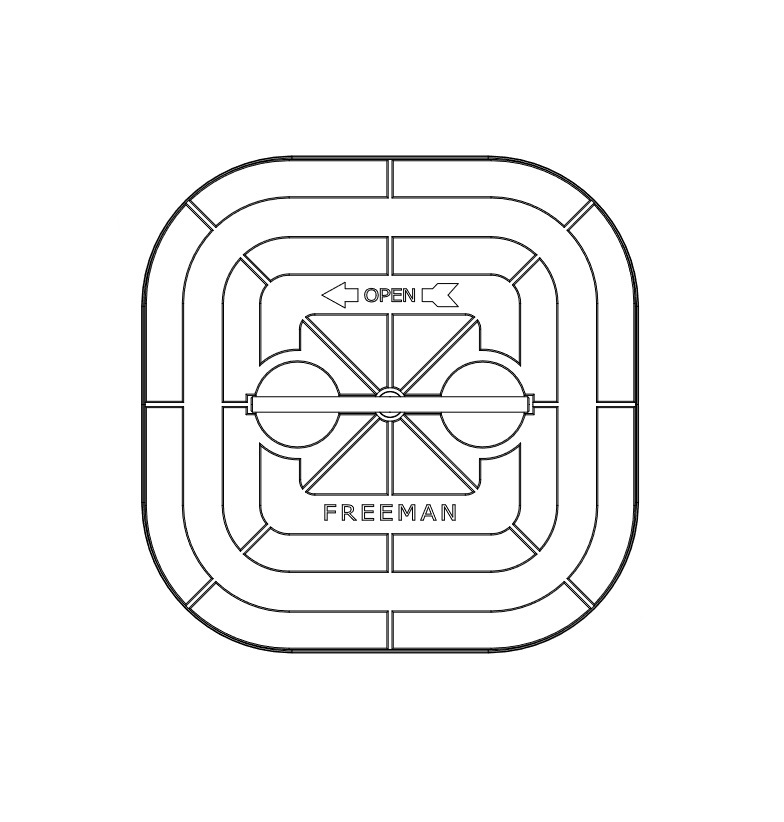

Freeman Marine square deck hatch model 2222K (22" x 22" clear opening, knife-edge seal)
Rugged flush 22" x 22" square deck hatch from Freeman Marine featuring commercial knife-edge sealing and a lift-out cover plate. Generously sized access, manhole, and inspection hatch for engine spaces, cargo holds, and tanks on commercial vessels and workboats.
- Secure payment by card
- Questions? Please give us a call!
- BrandFreeman Marine
- ConditionNew
Description
Article no.: BFR-2423
The Freeman Marine Model 2222K (2423 Series) is a rugged, heavy-duty square deck hatch featuring a 22" x 22" (559 x 559 mm) clear opening and time-tested knife-edge sealing technology. Engineered for flush deck installation, it provides a completely level profile that eliminates obstruction and optimizes working deck efficiency.
Utilizing Freeman's commercial knife-edge sealing mechanism, a raised coaming knife edge bites firmly into a resilient hollow seal housed within the cover plate. This concentrated pressure ensures 100% watertight and weathertight integrity against heavy breaking seas and high hydrostatic heads. The lift-out cover plate can be removed completely, providing unrestricted clearance for crew transit and machinery maintenance.
Key Features & Benefits:
- 22" x 22" (559 x 559 mm) clear opening – generous square dimensions for comfortable crew access and gear stowage.
- Lift-out cover plate – fully removable for unobstructed access in tight working areas.
- Knife-edge seal – delivers exceptional contact pressure for reliable sealing in extreme marine conditions.
- Protected seal design – gasket is recessed inside the cover, preventing mechanical damage when open.
- Cast marine-grade aluminum construction with corrosion-resistant stainless steel mechanisms.
- Quick-acting dogging mechanism operated by Freeman deck key or handle.
- Available as a complete unit with weldable ring (aluminum, steel, or stainless steel) or as a replacement cover plate only.
Available Configurations (select above):

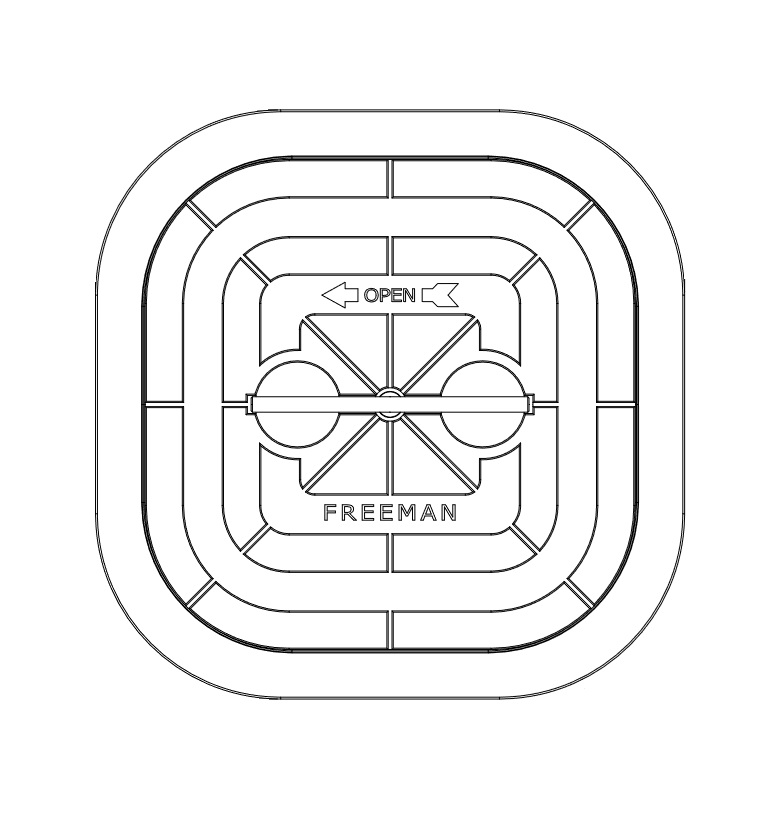

- Complete unit with aluminum deck ring (Part No: 2423-0002)
- Complete unit with steel deck ring (Part No: 2423-0003)
- Complete unit with stainless steel deck ring (Part No: 2423-0005)

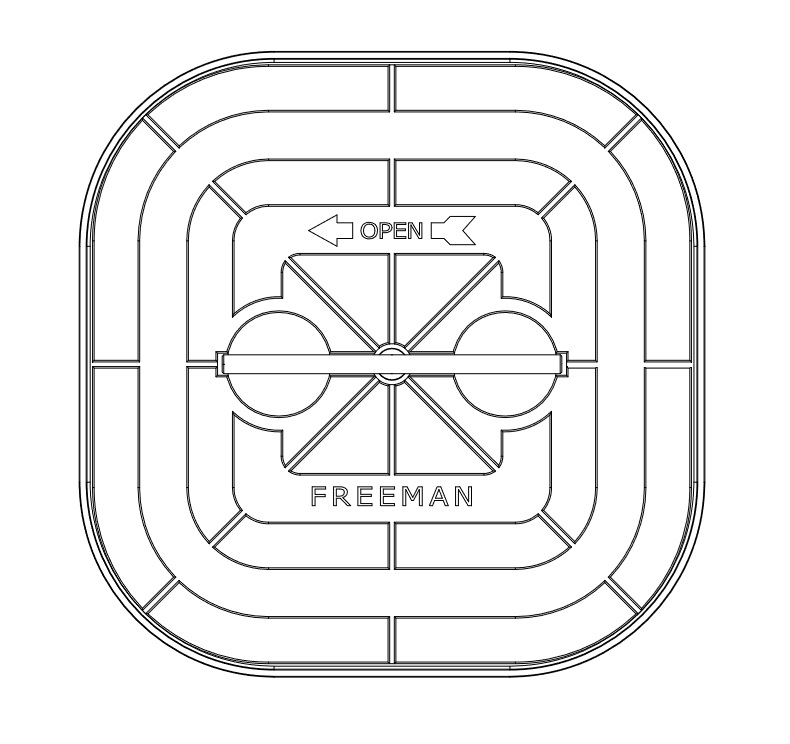

- Cover plate assembly only, without deck ring (Part No: 2423-1001)
Bövik Marin AB supplies authentic Freeman Marine hatches, replacement gaskets, and hardware worldwide. Contact us for technical support or quotation.
