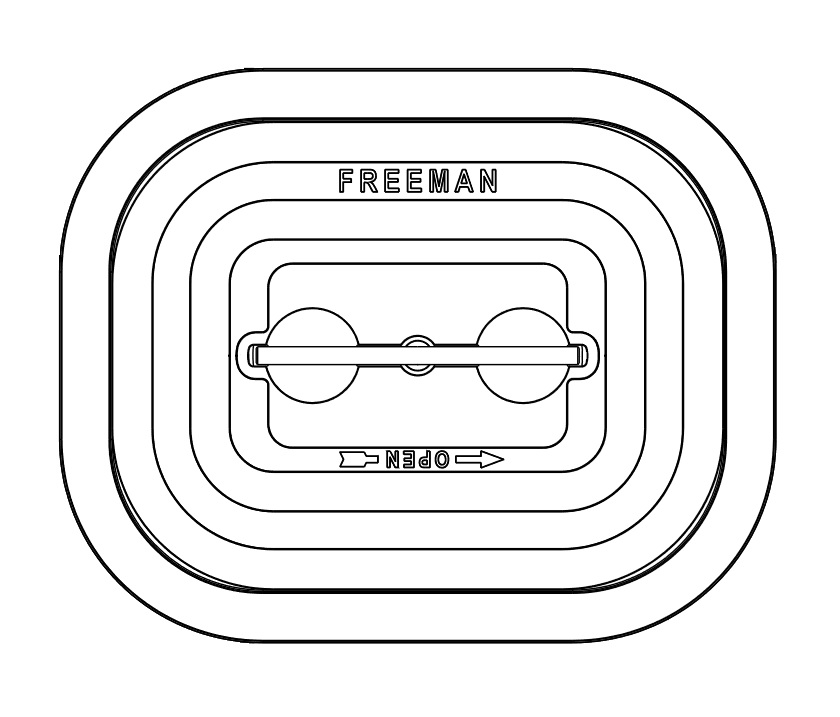

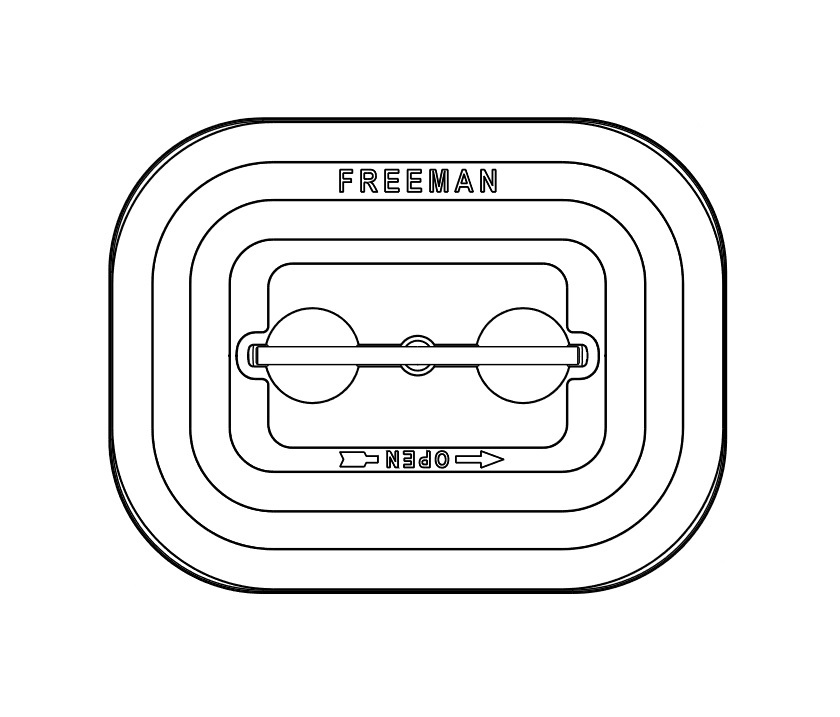

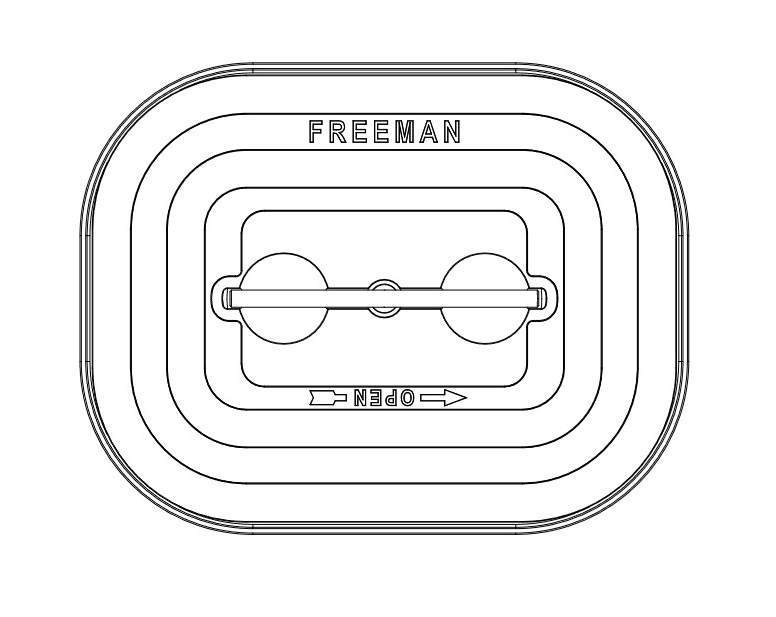

Freeman Marine rectangular deck hatch model 3036K (30" x 36" clear opening, knife-edge seal)
Extra-large heavy-duty 30" x 36" rectangular deck hatch from Freeman Marine featuring commercial knife-edge sealing and a lift-out cover plate. The ultimate deck hatch for machinery removal, cargo intake, generous crew access, and emergency egress on commercial vessels and offshore platforms.
- Secure payment by card
- Questions? Please give us a call!
- BrandFreeman Marine
- ConditionNew
Description
Article no.: BFR-2429
The Freeman Marine Model 3036K (2429 Series) is an extra-large, ultra-heavy-duty rectangular deck hatch featuring an impressive 30" x 36" (762 x 914 mm) clear opening and field-proven knife-edge sealing technology. With its expansive aperture, it provides the ultimate access solution for engine rooms, cargo holds, machinery removal, and pump service, while serving as a spacious emergency escape trunk for personnel in full gear.
Freeman's commercial knife-edge design concentrates dogging closure force along a machined coaming knife edge against a resilient hollow gasket housed inside the cover plate. This creates an uncompromising 100% watertight and weathertight seal capable of resisting extreme hydrostatic heads and heavy green water deck wash. The lift-out cover plate can be completely removed to provide an entirely unobstructed 30" x 36" opening for crane lifts and heavy equipment transfer. Because the gasket is recessed within the cover plate channel, it remains fully protected from mechanical damage and dropped tools when the hatch is open.
Key Features & Benefits:
- 30" x 36" (762 x 914 mm) clear opening – massive rectangular passage for machinery hoisting, cargo handling, and crew egress.
- Lift-out cover plate – completely removable for full, unobstructed access during crane operations.
- Knife-edge sealing – maximum contact pressure ensuring watertight reliability in extreme marine environments.
- Recessed gasket in cover – shielded from impact damage and foot traffic during deck operations.
- Rugged cast marine-grade aluminum construction with corrosion-resistant stainless steel mechanisms.
- Quick-acting dogging mechanism operated by Freeman deck key or handle.
- Available as a complete unit with weldable ring (aluminum, steel, or stainless steel) or as a replacement cover plate only.
Available Configurations (select above):
- Complete unit with aluminum deck ring (Part No: 2429-0002-0001)
- Complete unit with steel deck ring (Part No: 2429-0003-0001)
- Complete unit with stainless steel deck ring (Part No: 2429-0005-0001)
- Cover plate assembly only, without deck ring (Part No: 2429-1001-0001)
Bövik Marin AB supplies authentic Freeman Marine hatches, replacement gaskets, and hardware worldwide. Contact us for technical support or quotation.
Freeman's commercial knife-edge design concentrates dogging closure force along a machined coaming knife edge against a resilient hollow gasket housed inside the cover plate. This creates an uncompromising 100% watertight and weathertight seal capable of resisting extreme hydrostatic heads and heavy green water deck wash. The lift-out cover plate can be completely removed to provide an entirely unobstructed 30" x 36" opening for crane lifts and heavy equipment transfer. Because the gasket is recessed within the cover plate channel, it remains fully protected from mechanical damage and dropped tools when the hatch is open.
Key Features & Benefits:
- 30" x 36" (762 x 914 mm) clear opening – massive rectangular passage for machinery hoisting, cargo handling, and crew egress.
- Lift-out cover plate – completely removable for full, unobstructed access during crane operations.
- Knife-edge sealing – maximum contact pressure ensuring watertight reliability in extreme marine environments.
- Recessed gasket in cover – shielded from impact damage and foot traffic during deck operations.
- Rugged cast marine-grade aluminum construction with corrosion-resistant stainless steel mechanisms.
- Quick-acting dogging mechanism operated by Freeman deck key or handle.
- Available as a complete unit with weldable ring (aluminum, steel, or stainless steel) or as a replacement cover plate only.
Available Configurations (select above):
- Complete unit with aluminum deck ring (Part No: 2429-0002-0001)
- Complete unit with steel deck ring (Part No: 2429-0003-0001)
- Complete unit with stainless steel deck ring (Part No: 2429-0005-0001)
- Cover plate assembly only, without deck ring (Part No: 2429-1001-0001)
Bövik Marin AB supplies authentic Freeman Marine hatches, replacement gaskets, and hardware worldwide. Contact us for technical support or quotation.
