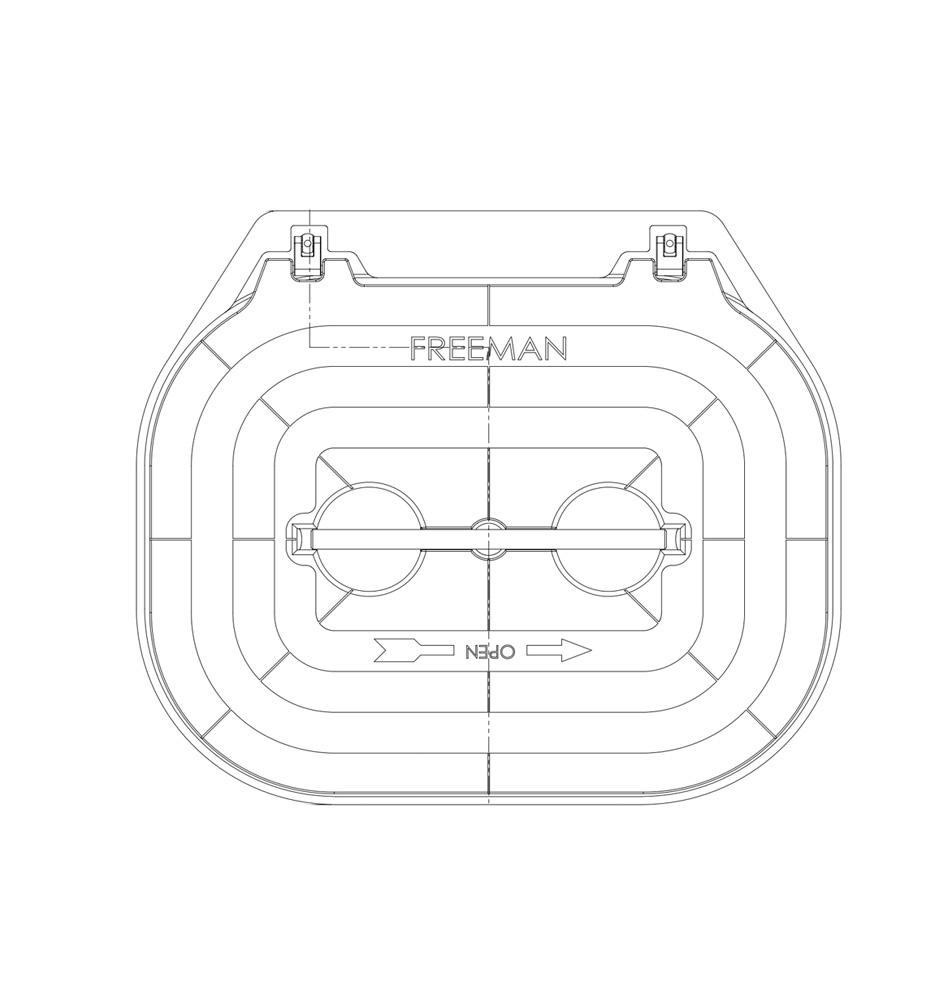

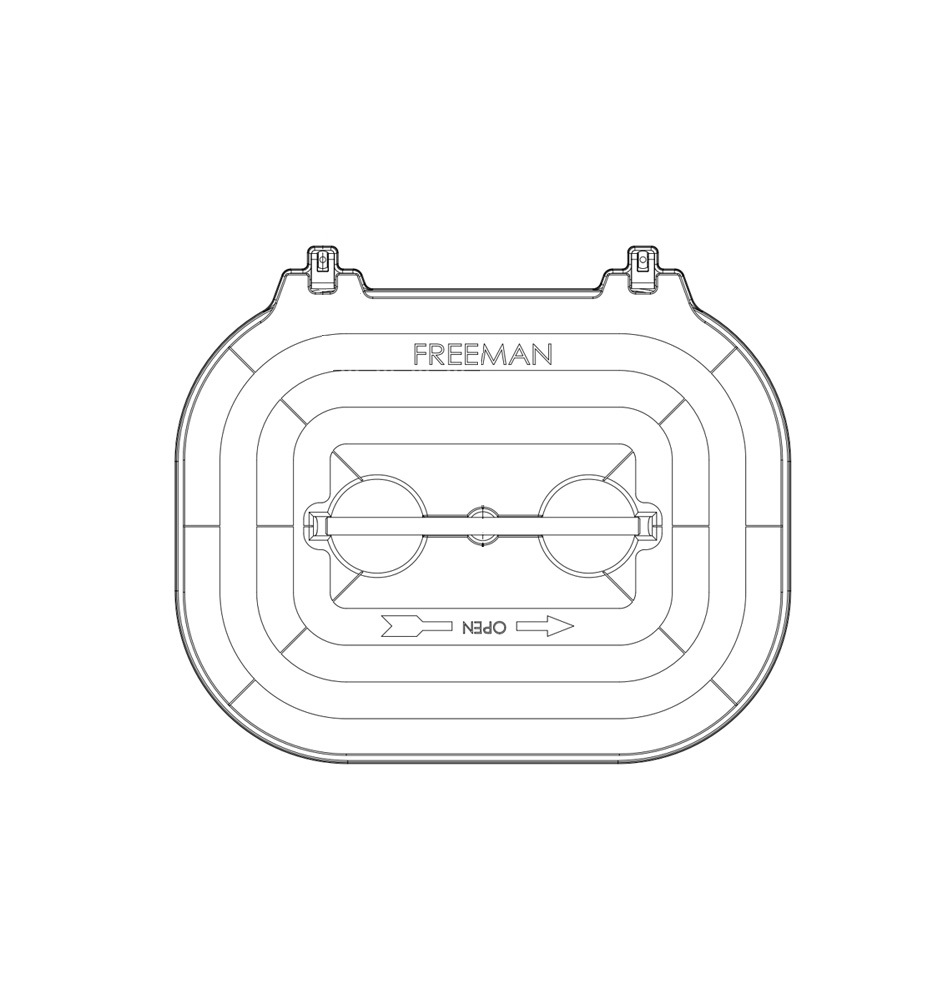

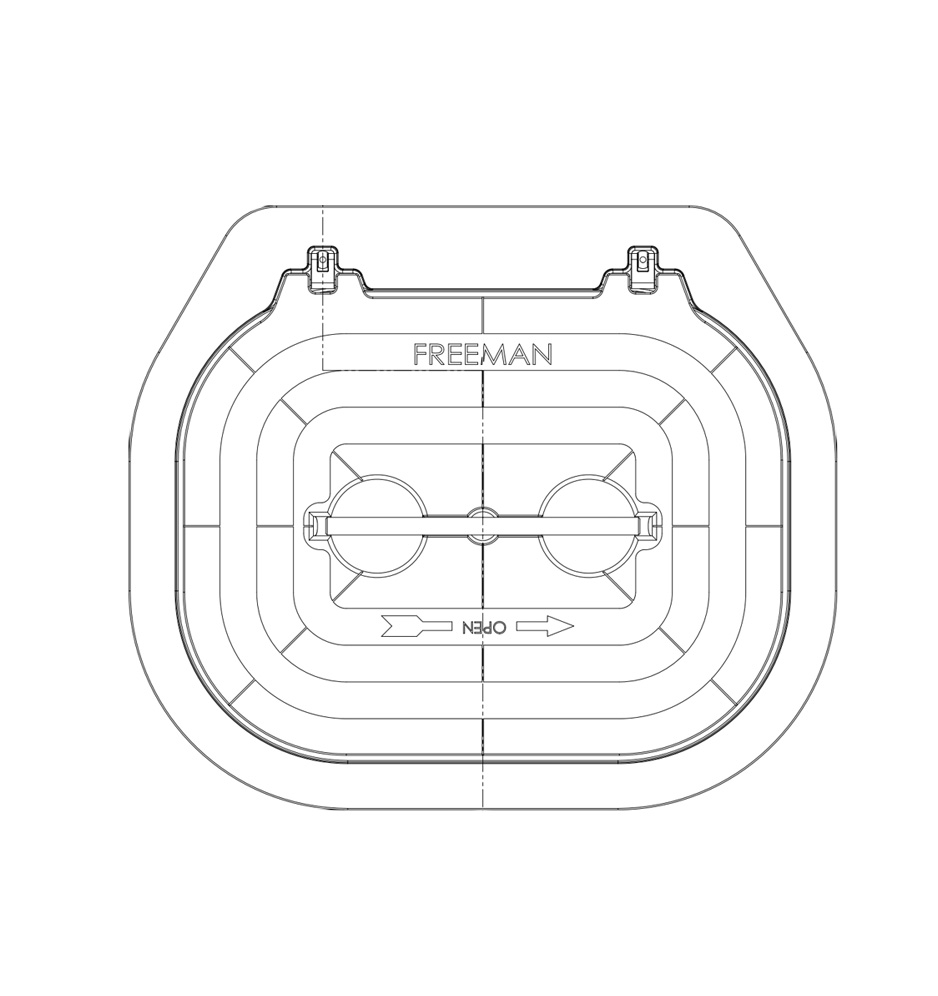

Freeman Marine hinged rectangular deck hatch model 1824-HK (18" x 24" clear opening, knife-edge seal)
Rugged 18" x 24" hinged rectangular deck hatch from Freeman Marine featuring commercial knife-edge sealing. Premier captive crew access, service, and machinery trunk hatch for commercial vessels, workboats, and patrol craft operating in demanding sea conditions.
- Secure payment by card
- Questions? Please give us a call!
- BrandFreeman Marine
- ConditionNew
Description
Article no.: BFR-2461
The Freeman Marine Model 1824-HK (2461 Series) is a rugged, commercial-grade hinged rectangular deck hatch featuring an 18" x 24" (457 x 610 mm) clear opening and time-proven knife-edge sealing technology. Combining practical rectangular clearance with captive hinged operation, it provides safe, reliable passage for crew and equipment across commercial workboats, patrol vessels, and offshore craft.
The heavy-duty integrated hinge keeps the cover plate safely secured to the deck ring when open, eliminating the hazards of uncontrolled swinging in rough seas, deck surface damage, or accidental overboard loss. Freeman's knife-edge design concentrates dogging closure force along a machined coaming knife edge against a resilient hollow gasket housed inside the cover plate. This establishes an uncompromising 100% watertight and weathertight barrier capable of resisting extreme hydrostatic heads and heavy deck washdown. Recessed within the cover plate channel, the seal remains fully protected against mechanical impact and foot traffic during deck operations.
Key Features & Benefits:
- 18" x 24" (457 x 610 mm) clear opening – practical rectangular aperture for crew access, engine spaces, and gear transfer.
- Hinged cover plate – securely attached to the ring for controlled handling and enhanced deck safety.
- Knife-edge seal – maximum contact pressure ensuring watertight reliability in extreme open-sea conditions.
- Recessed gasket in cover – shielded from impact damage and abrasive foot traffic when open.
- Rugged cast marine-grade aluminum construction with corrosion-resistant stainless steel mechanisms.
- Quick-acting dogging mechanism operated by Freeman deck key or handle.
- Available as a complete unit with weldable ring (aluminum, steel, or stainless steel) or as a replacement cover plate only.
Available Configurations (select above):
- Complete unit with aluminum deck ring (Part No: 2461-0002)
- Complete unit with steel deck ring (Part No: 2461-0003)
- Complete unit with stainless steel deck ring (Part No: 2461-0005)
- Cover plate assembly only, without deck ring (Part No: 2461-1001)
Bövik Marin AB supplies authentic Freeman Marine hatches, replacement gaskets, and hardware worldwide. Contact us for technical support or quotation.
