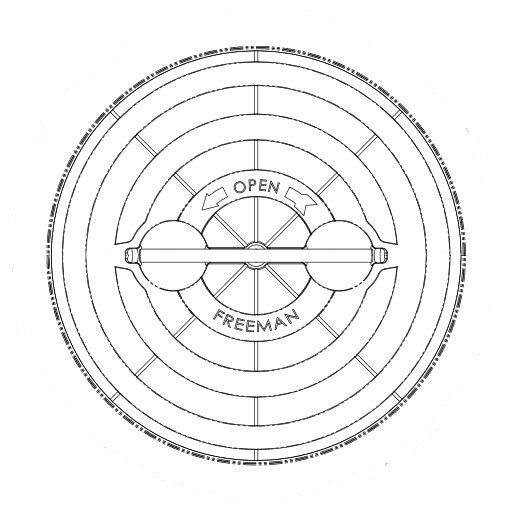

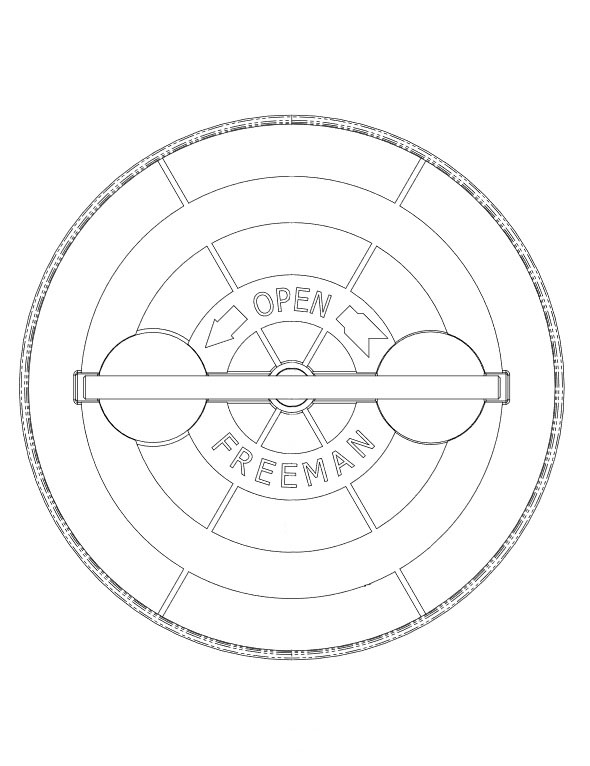

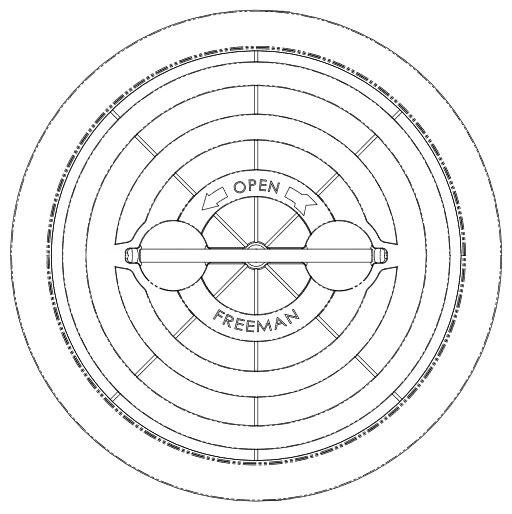

Freeman Marine round deck hatch model 20K (20" clear opening, knife-edge seal)
Heavy-duty 20-inch round deck hatch from Freeman Marine featuring commercial knife-edge sealing and a lift-out cover plate. Generously sized access, manhole, and inspection hatch for tanks and machinery spaces on commercial vessels, tugs, and workboats.
- Secure payment by card
- Questions? Please give us a call!
- BrandFreeman Marine
- ConditionNew
Description
Article no.: BFR-2407
The Freeman Marine Model 20K (2407 Series) is a heavy-duty, high-performance round deck hatch featuring a 20-inch (508 mm) clear opening and time-tested knife-edge sealing. Recognized worldwide across commercial marine operations, the knife-edge design concentrates dogging pressure along a raised coaming edge against a durable hollow seal housed in the cover plate, providing absolute 100% weathertight and watertight protection against severe wave action and high water pressure.
Designed for flush mounting, the Model 20K includes a fully removable lift-out cover plate, offering unobstructed access for crew maintenance and equipment handling. Having the gasket located inside the cover plate protects it from impact and mechanical abrasion during heavy deck cargo loading.
Key Features & Benefits:
- 20" (508 mm) clear opening – generous aperture for comfortable crew passage and equipment servicing.
- Lift-out cover plate – fully removable for unhindered entry and exit.
- Knife-edge seal – maximum contact pressure ensuring watertight reliability in extreme sea conditions.
- Gasket in cover – shielded from impact damage when the hatch is open.
- Cast marine-grade aluminum construction with corrosion-resistant stainless steel mechanisms.
- Operated by Freeman's quick-acting dogging mechanism with deck handle or spanner key.
- Available as a complete unit with weldable ring (aluminum, steel, or stainless steel) or as a replacement cover plate only.
Available Configurations (select above):
- Complete unit with aluminum deck ring (Part No: 2407-0002)
- Complete unit with steel deck ring (Part No: 2407-0003)
- Complete unit with stainless steel deck ring (Part No: 2407-0005)
- Cover plate assembly only, without deck ring (Part No: 2407-1001)
Bövik Marin AB supplies authentic Freeman Marine hatches, replacement gaskets, and hardware worldwide. Contact us for technical support or quotation.
