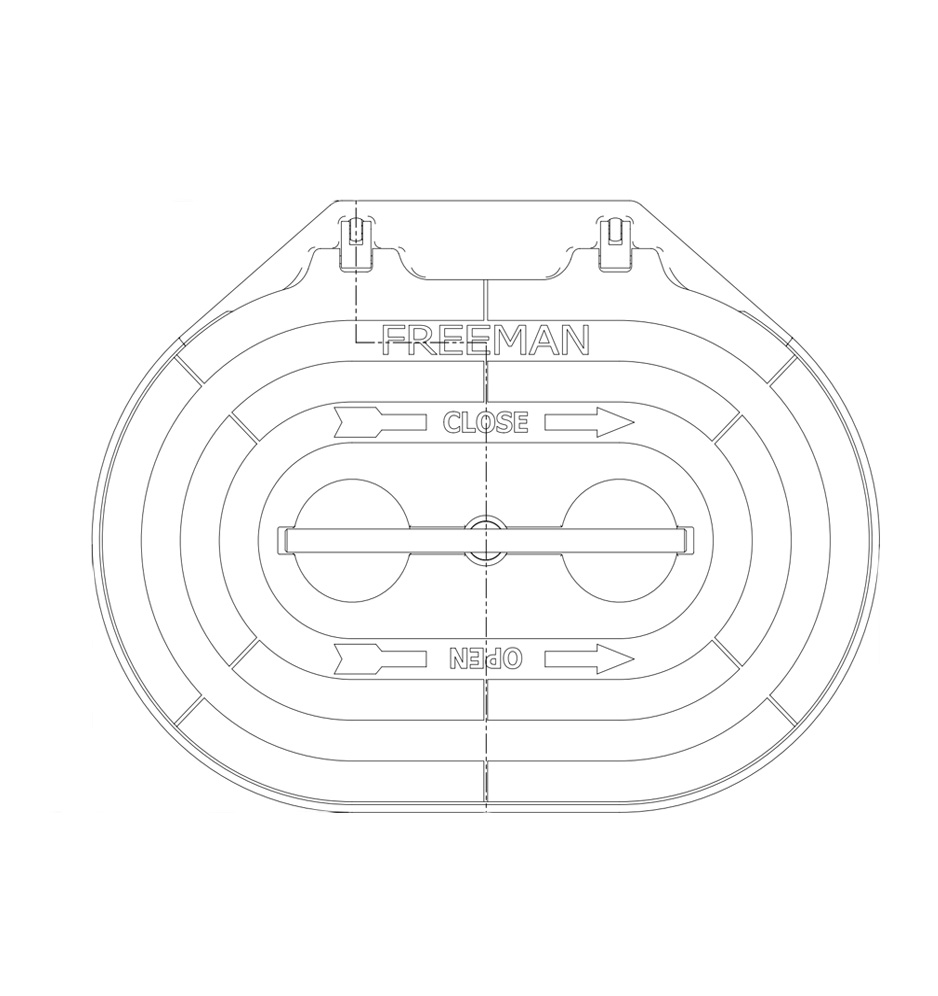

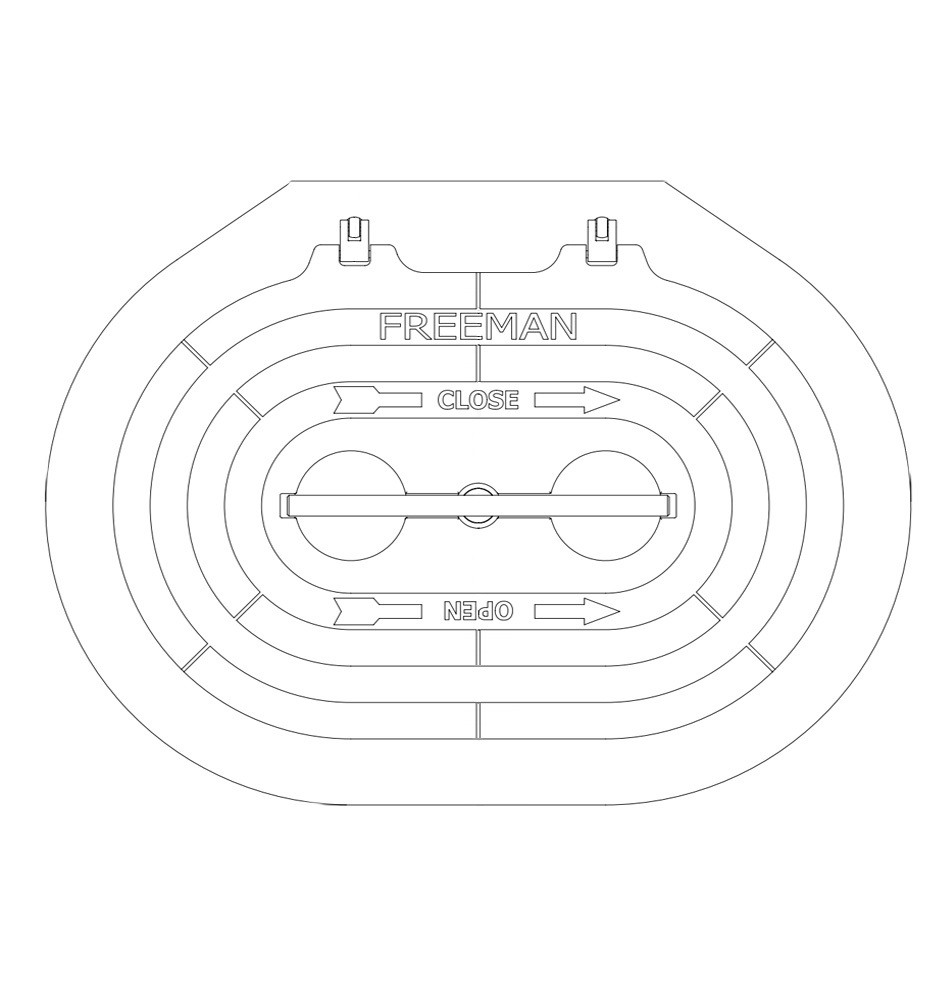

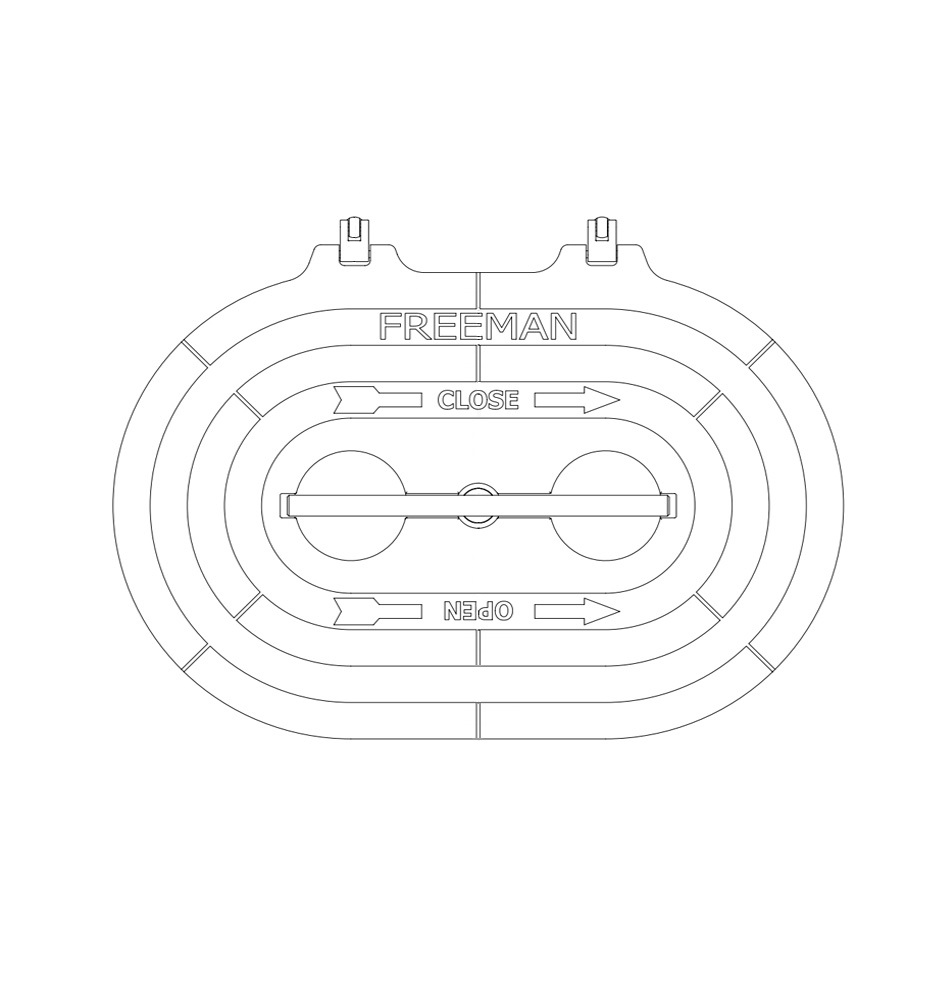

Freeman Marine hinged oval deck hatch model 1926-HK (19" x 26" clear opening, knife-edge seal)
Extra spacious 19" x 26" hinged oval deck hatch from Freeman Marine featuring commercial knife-edge sealing. Premier choice for large manholes, emergency escape hatches, and machinery access on commercial vessels and offshore workboats with captive cover operation.
- Secure payment by card
- Questions? Please give us a call!
- BrandFreeman Marine
- ConditionNew
Description
Article no.: BFR-2475
The Freeman Marine Model 1926-HK (2475 Series) is a heavy-duty, commercial-grade hinged oval deck hatch featuring an expansive 19" x 26" (483 x 660 mm) clear opening and time-proven knife-edge sealing technology. Combining generous oval passage with captive hinged operation, it serves as an ideal emergency escape hatch, crew manhole, and machinery trunk access point for personnel in bulky protective gear, while fitting neatly within longitudinal deck structural framing.
The heavy-duty integrated hinge secures the cover plate directly to the deck ring, preventing uncontrolled swinging, accidental closing in rough sea states, or overboard loss. Freeman's knife-edge design concentrates dogging closure force along a machined coaming knife edge against a resilient hollow gasket housed inside the cover plate. This provides an uncompromising 100% watertight and weathertight barrier capable of resisting extreme hydrostatic head pressures and heavy green sea wash. Because the gasket is recessed within the cover plate, it remains fully protected from mechanical damage and abrasive foot traffic when the hatch is open.
Key Features & Benefits:
- 19" x 26" (483 x 660 mm) clear opening – expansive oval dimensions ideal for crew manholes and emergency escape trunks.
- Hinged cover plate – securely attached to the ring for controlled, safe deck operations.
- Knife-edge seal – maximum contact pressure ensuring watertight reliability in extreme marine environments.
- Recessed gasket in cover – shielded from impact damage and foot traffic during cargo handling.
- Rugged cast marine-grade aluminum construction with corrosion-resistant stainless steel mechanisms.
- Quick-acting dogging mechanism operated by Freeman deck key or handle.
- Available as a complete unit with weldable ring (aluminum, steel, or stainless steel) or as a replacement cover plate only.
Available Configurations (select above):
- Complete unit with aluminum deck ring (Part No: 2475-0002)
- Complete unit with steel deck ring (Part No: 2475-0003)
- Complete unit with stainless steel deck ring (Part No: 2475-0005)
- Cover plate assembly only, without deck ring (Part No: 2475-1001)
Bövik Marin AB supplies authentic Freeman Marine hatches, replacement gaskets, and hardware worldwide. Contact us for technical support or quotation.
