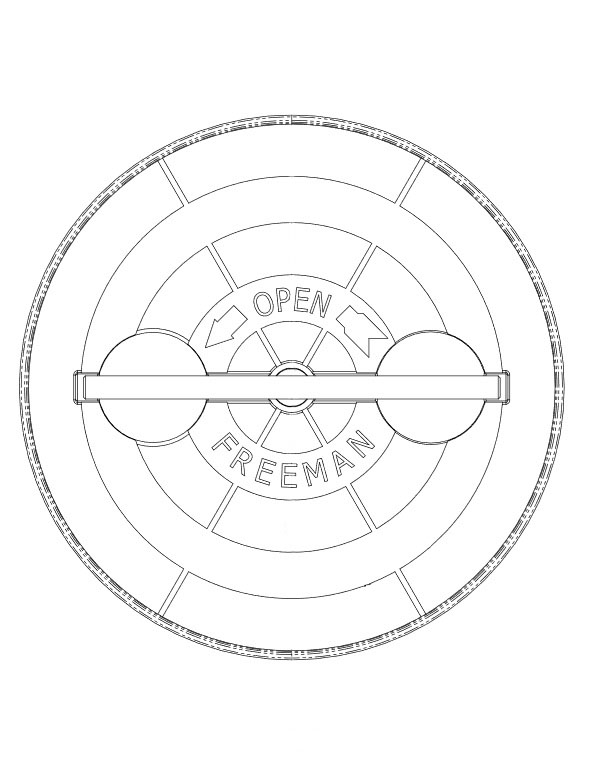

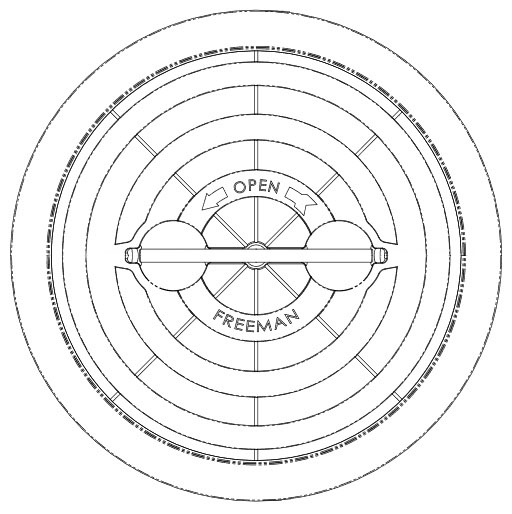

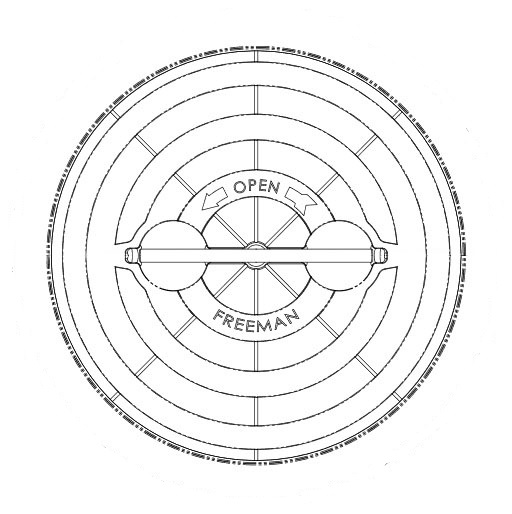

Freeman Marine round deck hatch model 18K (18" clear opening, knife-edge seal)
Rugged 18-inch round deck hatch from Freeman Marine featuring time-tested knife-edge sealing and a lift-out cover plate. The industry-standard escape, service, and manhole hatch for commercial vessels, workboats, and fishing craft operating in demanding marine environments.
- Secure payment by card
- Questions? Please give us a call!
- BrandFreeman Marine
- ConditionNew
Description
Article no.: BFR-2405
The Freeman Marine Model 18K (2405 Series) is a rugged, field-proven round deck hatch featuring an 18-inch (457 mm) clear opening and classic knife-edge sealing technology. As the trusted industry standard across commercial shipping and heavy workboats, knife-edge hatches utilize a machined coaming knife edge that bites firmly into a resilient hollow neoprene gasket housed in the cover plate. This design concentrates dogging force into high contact pressure, ensuring 100% weathertight and watertight integrity even under severe deck wash and hydrostatic heads.
Engineered for flush deck mounting, the Model 18K features a fully removable lift-out cover plate, offering completely unobstructed clearance for personnel access and gear transfer. Because the gasket is recessed inside the cover plate, it remains well protected from impact damage during cargo handling and deck operations when open.
Key Features & Benefits:
- 18" (457 mm) clear opening – proven standard dimension for emergency escape and crew access.
- Lift-out cover plate – completely removable for full, unrestricted passage.
- Knife-edge sealing – delivers superior gasket compression and sealing reliability on exposed decks.
- Recessed cover gasket – shielded from wear and mechanical abrasion when the hatch is open.
- Heavy-duty cast marine-grade aluminum cover with stainless steel dogging components.
- Quick-acting central dogging mechanism operated by Freeman deck key or handle.
- Available as a complete unit with weldable ring (aluminum, steel, or stainless steel) or as a replacement cover plate only.
Available Configurations (select above):
- Complete unit with aluminum deck ring (Part No: 2405-0002)
- Complete unit with steel deck ring (Part No: 2405-0003)
- Complete unit with stainless steel deck ring (Part No: 2405-0005)
- Cover plate assembly only, without deck ring (Part No: 2405-1001)
Bövik Marin AB supplies authentic Freeman Marine hatches, replacement gaskets, and hardware worldwide. Contact us for technical support or quotation.
