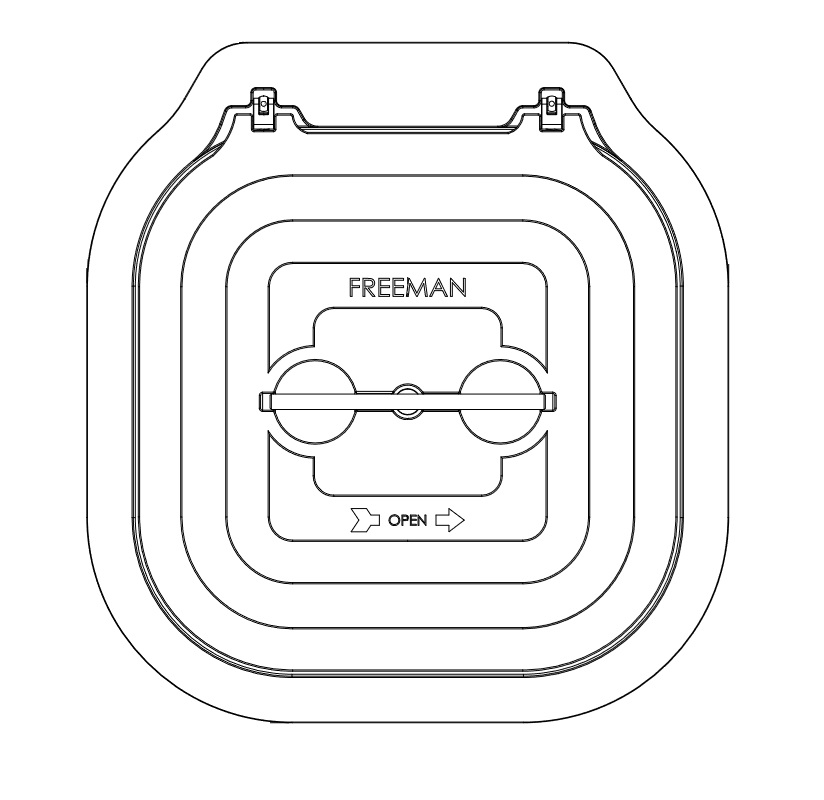

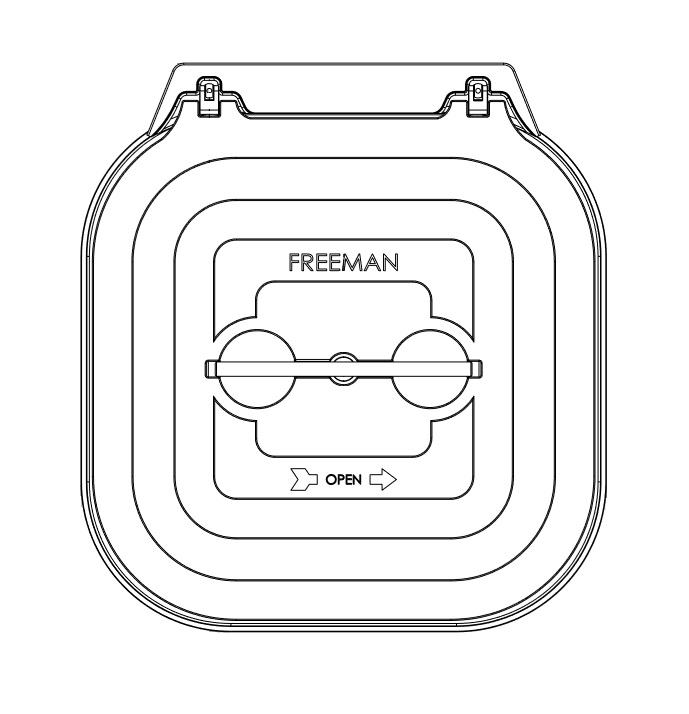

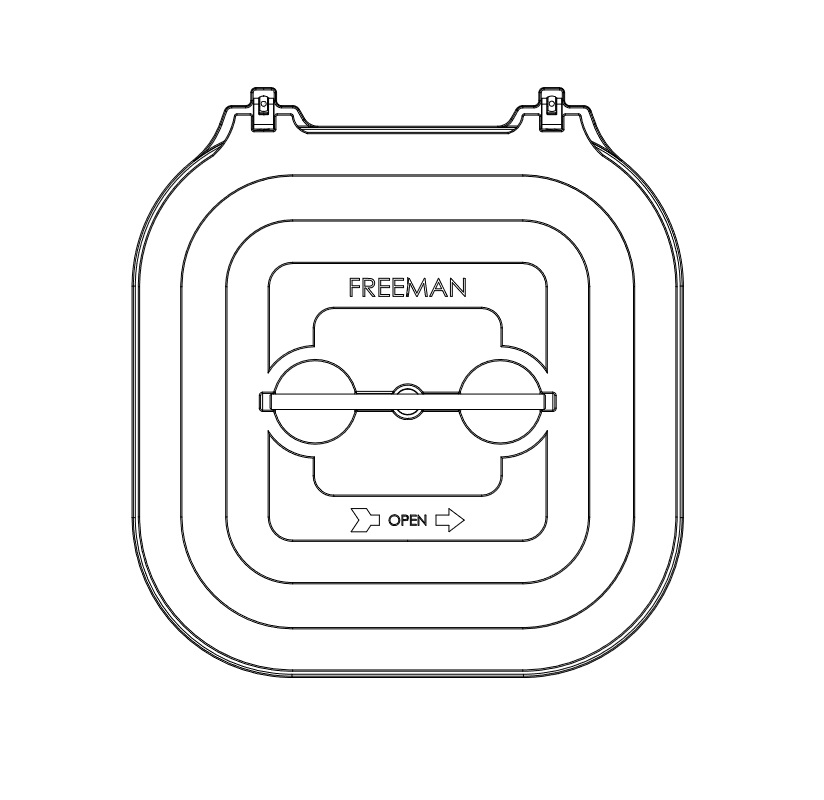

Freeman Marine hinged square deck hatch model 2020-HK (20" x 20" clear opening, knife-edge seal)
Heavy-duty flush 20" x 20" hinged square deck hatch from Freeman Marine featuring commercial knife-edge sealing. Ideal secure service and manhole access hatch for engine rooms, cargo spaces, and tanks on commercial vessels and workboats with captive hinged operation.
- Secure payment by card
- Questions? Please give us a call!
- BrandFreeman Marine
- ConditionNew
Description
Article no.: BFR-2462
The Freeman Marine Model 2020-HK (2462 Series) is a rugged, heavy-duty hinged square deck hatch featuring a 20" x 20" (508 x 508 mm) clear opening and time-proven knife-edge sealing technology. Designed for flush deck mounting, it blends smoothly into deck surfaces, eliminating tripping hazards and facilitating seamless deck operations.
The heavy-duty integrated hinge keeps the cover plate securely captive to the coaming, ensuring safe and controlled operation in rough seas while preventing deck damage or accidental cover loss overboard. The hatch utilizes Freeman's proven knife-edge sealing system, where a precision coaming knife edge concentrates dogging force into a resilient hollow neoprene gasket recessed in the cover plate. This creates a 100% watertight and weathertight barrier capable of withstanding heavy breaking seas and high hydrostatic loads. Recessed within the cover plate channel, the gasket is shielded from cargo impact and foot traffic when open.
Key Features & Benefits:
- 20" x 20" (508 x 508 mm) clear opening – generous square access for crew passage and equipment maintenance.
- Hinged cover plate – securely attached to the ring for controlled, safe deck operations.
- Knife-edge seal – maximum contact pressure ensuring watertight reliability under severe sea conditions.
- Recessed cover gasket – shielded from damage and abrasion when the hatch is open.
- Rugged marine-grade cast aluminum cover with stainless steel dogging components.
- Quick-acting central dogging mechanism operated by Freeman deck key or handle.
- Available as a complete unit with weldable ring (aluminum, steel, or stainless steel) or as a replacement cover plate only.
Available Configurations (select above):
- Complete unit with aluminum deck ring (Part No: 2462-0002)
- Complete unit with steel deck ring (Part No: 2462-0003)
- Complete unit with stainless steel deck ring (Part No: 2462-0005)
- Cover plate assembly only, without deck ring (Part No: 2462-1001)
Bövik Marin AB supplies authentic Freeman Marine hatches, replacement gaskets, and hardware worldwide. Contact us for technical support or quotation.
